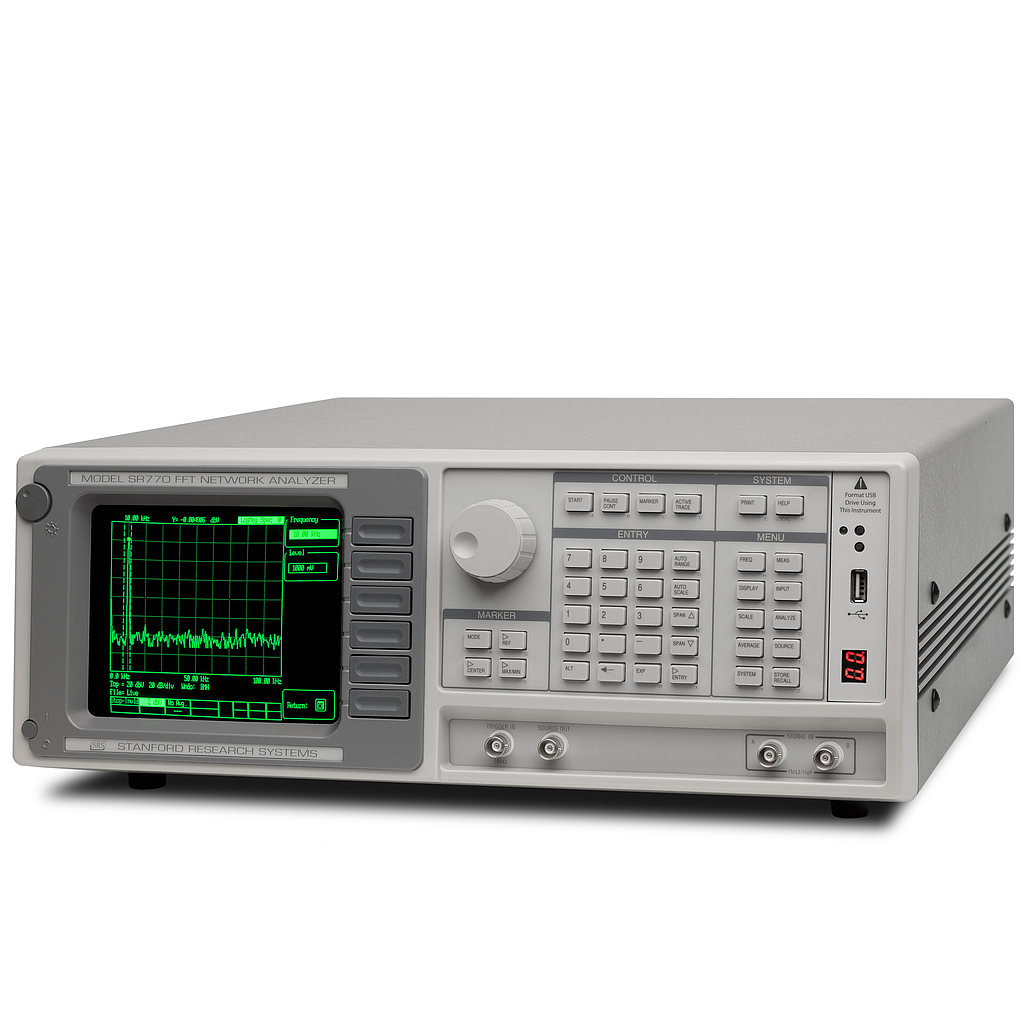

Stanford SR770 FFTスペクトラムアナライザ (476 µHz - 100 kHz)
生産者: Stanford Model: SR770 品物を保証します: 12 Month - 要件クオート
- 連絡先
전화번호: いい価格のため、連絡しなさい
ホットライン: (+84) 968060220
電話番号: +84 (24)62923267
Frequency:
Measurement range: 476 µHz to 100 kHz
Spans: 191 mHz to 100 kHz in a binary sequence
Center frequency: Anywhere within the 0 to 100 kHz measurement range
Accuracy: 25 ppm from 20 °C to 40 °C
Resolution: Span/400
Window functions: Blackman-Harris, Hanning, Flat-Top and Uniform
Real-time bandwidth: 100 kHz
Signal Input:
Number of channels: 1
Input: Single-ended or differential
Input impedance: 1 MΩ, 15 pF
Coupling: AC or DC
CMRR (at 1 kHz):
90 dB (input range <-6 dBV)
80 dB (input range <14 dBV)
50 dB (input range ≥14 dBV)
Noise:
Typ. 5 nVrms/√Hz at 1 kHz (-162 dBVrms/√Hz)
Max. 10 nVrms/√Hz (-155 dBVrms/√Hz)
Amplitude:
Full-scale input range: -60 dBV (1.0 mVp) to +34 dBV (50 Vp) in 2 dB steps
Dynamic range: 90 dB (typ.)
Harmonic distortion: No greater than -80 dB from DC to 100 kHz (input range 0 dBV)
Spurious:
No greater than -85 dB below full scale (<200 Hz).
No greater than -90 dB below full scale to 100 kHz (-50 dBV input range).
Trigger Input:
Modes: Continuous, internal, external, TTL
Internal level: Adjustable to ±100 % of input scale. Positive or negative slope.
Min. trigger amplitude: 10 % of input range
External level: ±5 V in 40 mV steps. Positive or negative slope. 10 kΩ Impedance
Min. trigger amplitude: 100 mV
Source:
Amplitude range: 0.1 mVp to 1.0 Vp
Amplitude resolution: 1 mVp (output >100 mVp), 0.1 mVp (output <100 mVp)
DC offset: <10.0 mV (typ.)
Output impedance: <5 Ω, 50 mA peak output current
General:
Data storage: USB drive
Power: 60 W, 100/120/220/240 VAC, 50/60 Hz
Dimensions: 17" × 6.25" × 18.5" (WHL)
Weight: 36 lbs.
