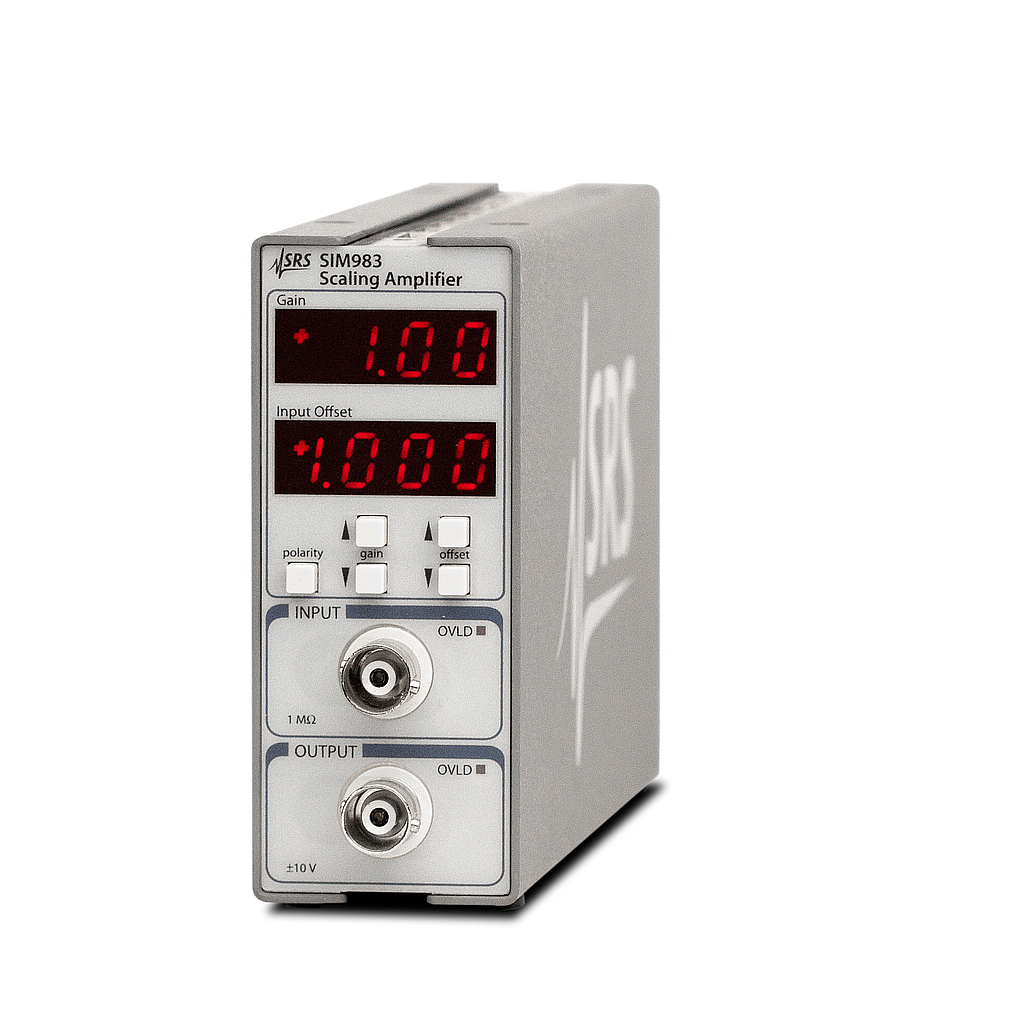

SRS SIM983 スケーリングアンプ (±0.01 - ±19.99)

Impedance: 1 MΩ

Bandwidth: DC to 1 MHz

Input noise (typ.): 45 nV/√Hz at 1 kHz

Offset: ±10 V (3½-digit resolution)

Max. input: ±10 V

Gain: ±0.01 to ±19.99

Max. output: ±10 V

THD: 0.003 % (90 dB) at 1 kHz

Slew rate: 70 V/µs

Operating temperature: 0 °C to 40 °C (non-condensing)

Interface: Serial via SIM interface

Connectors: BNC (2 front-panel, 1 rear-panel); DB15 (male) SIM interface

Power: Power supplied by the SIM900 Mainframe, or optionally by a user-supplied DC power supply (±15 V and +5 V).

Dimensions: 1.5" × 3.6" × 7.0" (WHL)

Weight: 1.5 lbs.
