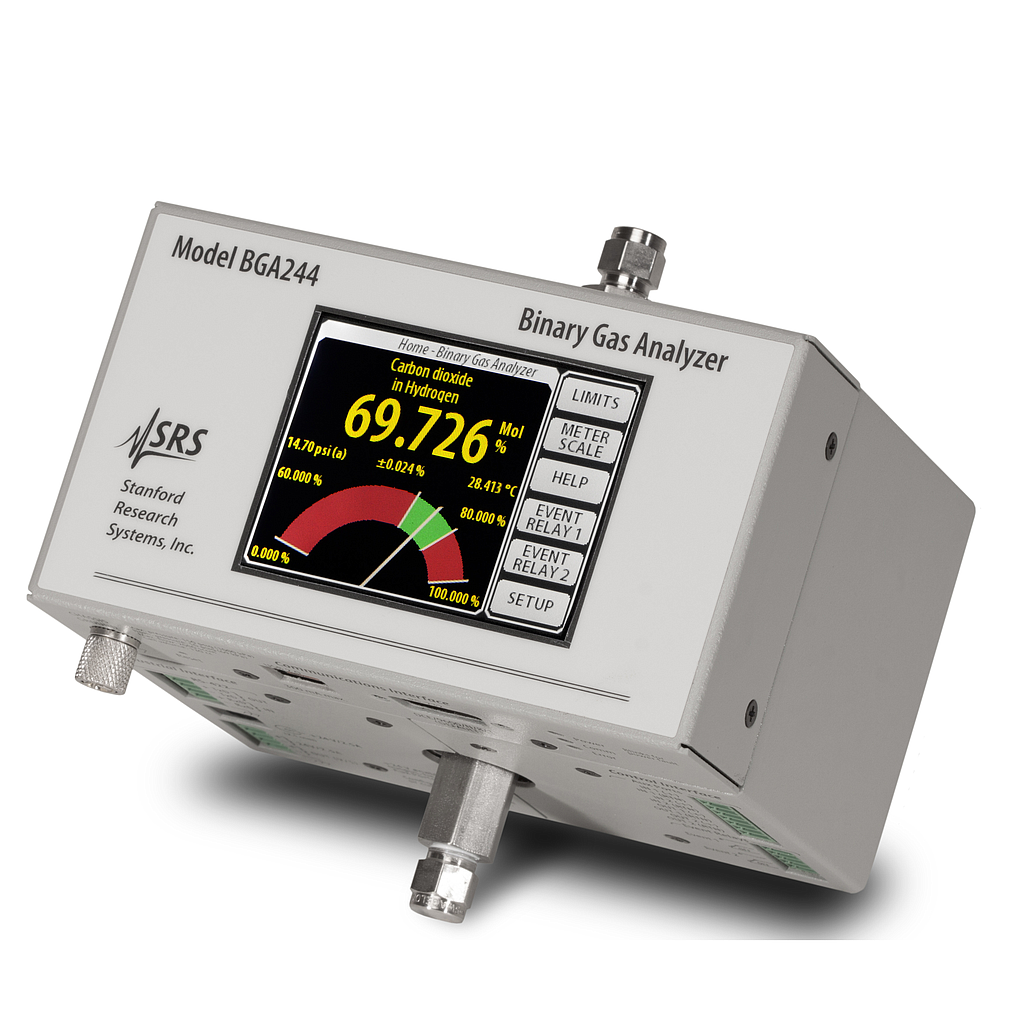

SRS BGA244HP バイナリガス分析計 (Welded 1/4" male VCR)

Operating temperature: -20 °C to +70 °C

Temperature resolution: 0.001 °C

Temperature accuracy: ±0.1 °C

Speed of sound range: 100 to 1500 m/s

Speed of sound resolution: 0.001 m/s

Speed of sound accuracy: ±0.05 % (1 atm argon at 200 sccm)

Concentration accuracy: ±0.1 % typ. (species dependent)

Measurement rate: 4.4 Hz

Exponential averaging: Off, or 2 to 100 periods

Cavity:

Volume: 130 cc

Operating flow rate: 0 to 5000 sccm

Min. operating pressure (psi): <5 psia typ. (species dependent)

Cavity proof pressure: 2,500 psi

In-bound helium leak rate: 1 × 10–8 std-cc/s (BGA244HP only)

Analog I/O:

Ports: 3 output ports, 2 input ports

I/O port ranges: 0 to 5 V, 0 to 10 V, and 4 to 20 mA

Accuracy:

Voltage: ±0.1 % + 1 mV,

Current: ±0.1 % + 10 µA

4-20 mA loop power: 6 to 19 VDC

4-20 mA output compliance: 0 to 16.8 VDC

Cavity Heaters:

Set temperature: 0 °C to 70 °C

Power limit: Off, or 0.5 W to 60 W

Gas fittings: Welded 1/4" male VCR

Dimensions: 5" × 4.5" × 3.25" (WHD)

Weight: 7 lbs.
