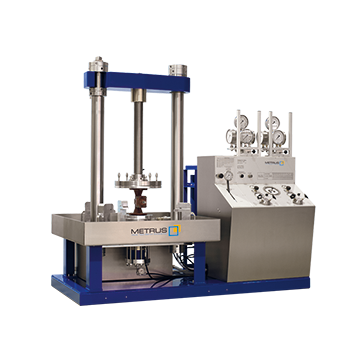

METRUS SV 50/400 E Test Bench For Safety Valves (50tons, 15~400mm)

Clamping range: DN15-DN400 1/2“-16“

Clamping force: 50 tons

Way of clamping: hydraulic clamping system with 3 and 2 claws (alternatively)

Test fluid: Gas/air (external supply)

Pressure piping: PN600 bar stainless steel

Stainless steel control panel

Anodized, chemical resistant front panel

Bubble counter + rubber plugs up to DN 100

Safety locking - prevents opening of clamping unit when system is pressurized.

Gauge quick connection for tool free change of gauges

METRUS Precision valves

Options:

Water testing up to 600 bar with test fluid separation - separate measuring system, separate needle valves, st. steel drip pan

Closed water circuit - 2 chamber stainless steel tank, fi lling pump, maintenance free evacuation system

Bladder accumulator for water testing

Internal high pressure air generation via booster up to 400 bar.

Safety pressure limitation system

Gauge turret for 4+1 gauges

Safety cabinet for clamping unit

CRS with panel PC

ESD Emergency Shut Off
