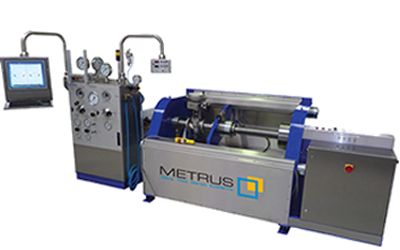

METRUS CSV 220/300 Valve Test Bench For Control And Shut-off Valves (220 tons, 100~300mm)

Max. clamping force: 220 tons

Clamping range: DN100- DN300 / 4″-12″

Stainless steel control cabinet

Anodized, acid proof front panel

METRUS precision valve technology

Shell test with water up to 600 bar

Seat leakage test with air up to 9 bar

Actuator supply: air up to 6 bar

Clamping via automatic seal heads

Air lock free filling

Closed water circuit

Dual chamber SS tank

Stainless steel tubing PN600

Gauge quick connection

Bubble counter (DIN/EN, ASME and API)

Adapted high pressure pump

Overload protection

Options:

Testing AB – the third connection

External testing adaptor

Bi directional testing

High pressure air/gas inlet

High pressure water up to 1600 bar

Pneumatic sequential control

Visual seat inspection

Flow meter cascade

Gauge turret

CRS – Computer Registration System

Panel PC on swivel arm

Safety pressure limitation

Safety doors

ESD – Emergency Shut Down
