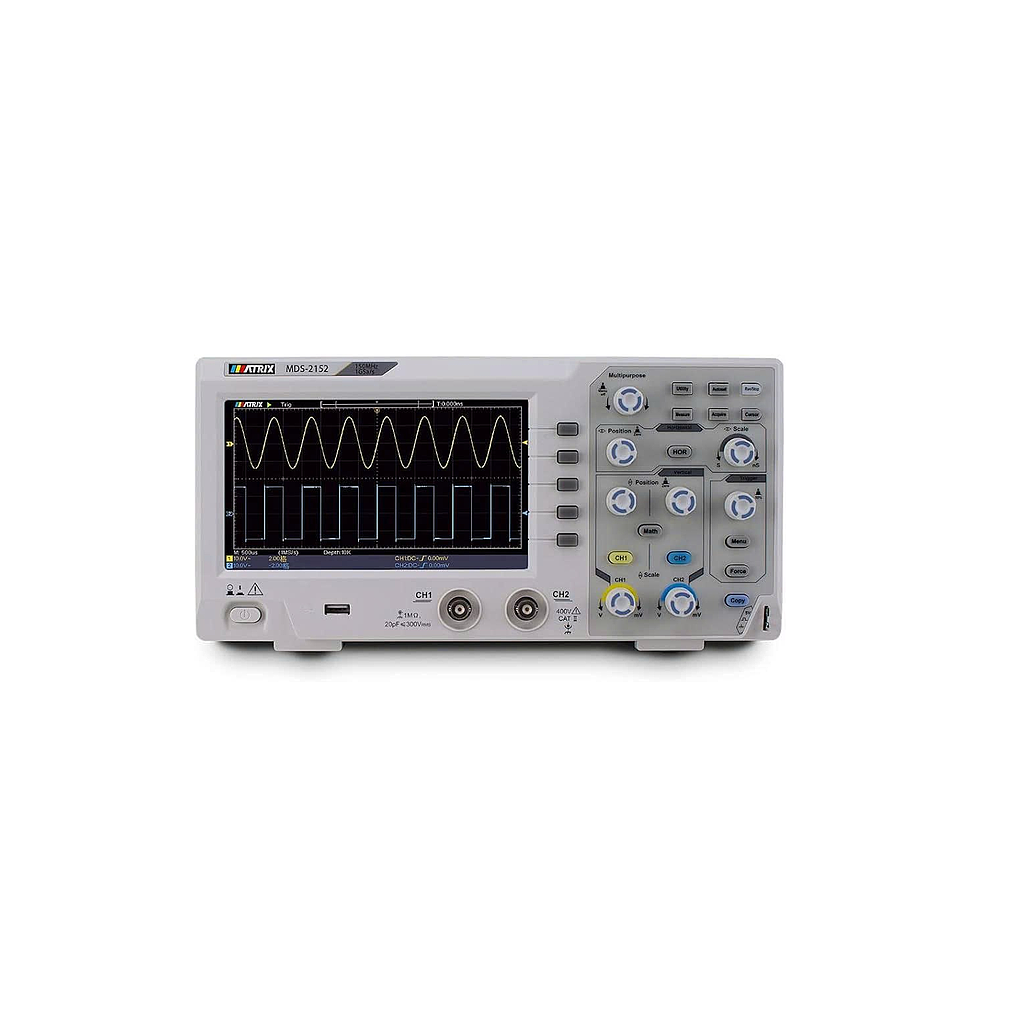

MATRIX MDS2152 Super-economical Type Digital Storage Oscilloscope (150MHz, 2CH)

Bandwidth: ≤ 150 MHz

Rise Time(at input, typical): ≤ 3.5 ns

Horizontal Scale: 2 ns/div – 1000 s/div, step by 1-2-5

Sample rate (real time): 1 GS/s

Display: 7" Colored LCD (Liquid Crystal Display),65536 colors, 800 x 480 pixels

Channel: 2 channels

Max Record length: 10K

Sampling rate / relay time accuracy: ±100 ppm

Input coupling: DC,  AC,  Ground

Input impedance: 1 MΩ±2%, in parallel with 20 pF±5 pF

Max. input voltage: 400V (DC+AC, PK - PK)

DC Gain Accuracy: ±3%

Vertical Sensitivity: 5 mV/div – 5 V/div

Trigger type: Edge, Video

Trigger mode: Auto, Normal, Single

Line/field frequency (Video): Support standard NTSC, PAL and SECAM broadcast systems

Automatic measurement: Period, Frequency, Mean, PK-PK, RMS, Max, Min, Top, Base, Amplitude, Overshoot, Preshoot, Rise Time, Fall Time, +PulseWidth, -PulseWidth, +Duty Cycle, -Duty Cycle, Delay A→B, Delay A→B, Cycle RMS, Cursor RMS, Screen Duty, Phase, +PulseCount, -PulseCount, RiseEdgeCnt, FallEdgeCnt, Area, and Cycle Area.

Waveform Math: +, -, ×, ÷, FFT

Waveform storage: 16 waveforms

Communication interface: USB 2.0, USB flash disk storage

Power supply: 100 - 240 VACRMS,50/60 Hz,CATⅡ

Fuse: 2 A, T class, 250 V

Mechanical Specifications:

Dimension: 301 mm× 152 mm×70 mm (L*H*W)

Weight: About 1.1 kg
