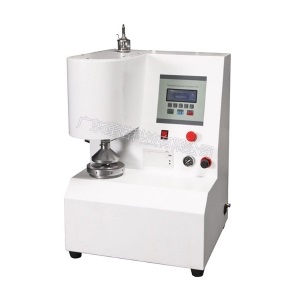

Jinuosh L-CP001 破裂強度試験機 (> 690kPa)

Display mode: LCD display

Degree of decomposition: 1/10000

Units: LB/in^2 (psi), Kgf/cm^2, Kpa

Indication error: ±0.5%FS

Variability of value: ≤0.5%

Automatic clamping and loosening device, sample clamping force: > 690kPa(adjustable)

Test system tightness: pressure drop < 10%Pmax within 1min

Resolution: 1 kpa

Air displacement: (0.02~0.3) m3 /min

Rated pressure: (0.6~0.7) Mpa

Weight: about 50kg

Hydraulic oil: glycerin 85%, distilled water 15%

Clamp ring on the ring diameter: high pressure type Φ 31.50 mm

Ring: under high pressure type Φ 31.50 mm

Size: 47*45*65 cm

Power source: AC220V±10%, 50Hz 120W

Rupture resistance measurement range: 250~5600kPa

Pressure speed: 170±15ml/min
