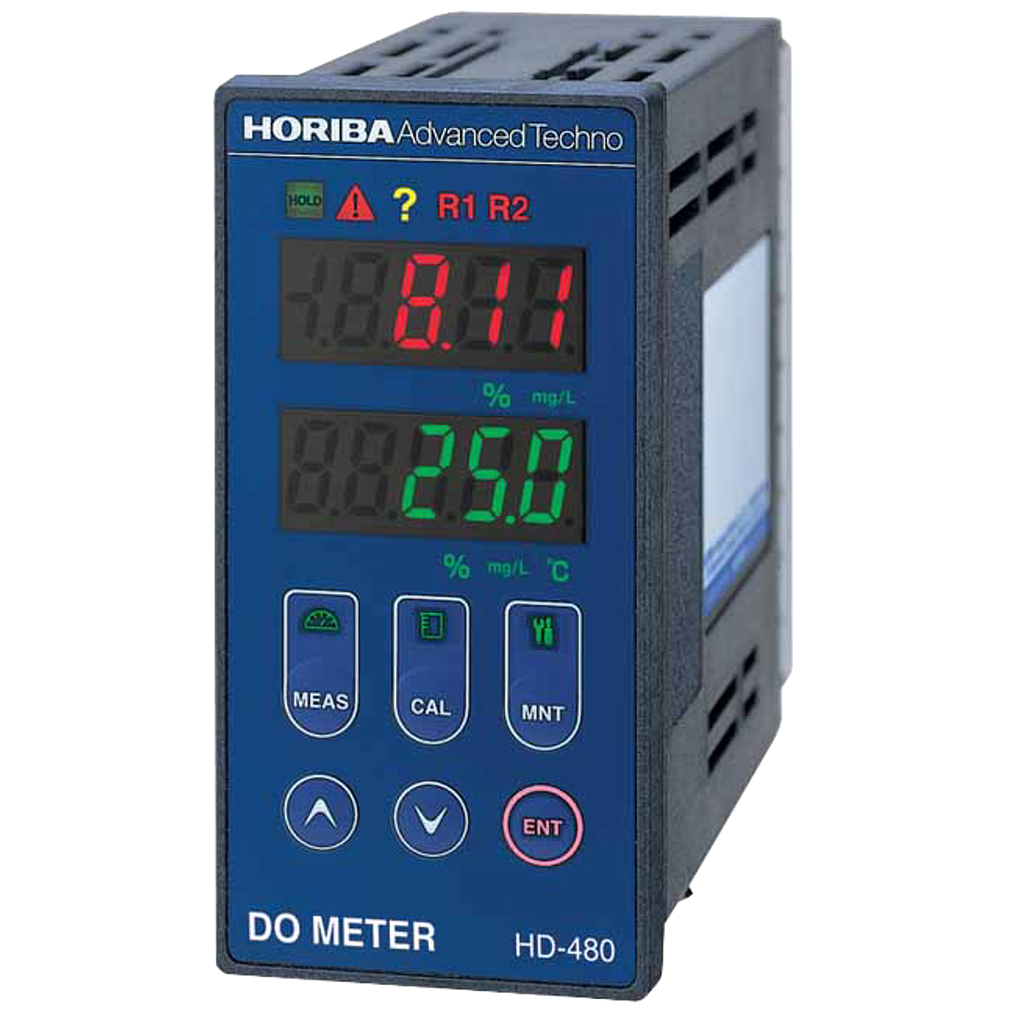

HORIBA HD-480 溶存酸素計 (4-Wire Transmitter)

Measurement method: Galvanic cell method

Measuring range

- Dissolved oxygen: 0mg/L to 20mg/L, 0.01 mg/L resolution

- Saturation 0% to 200%, 1% resolution

- Temperature 0℃ to 40℃, 0.1℃ resolution

Repeatability: Within ±0.5% of the full scale (by equivalent input)

Linearity: Within ±0.5% of the full scale (by equivalent input)

Tranmission output: 4-20mA DC, input/output isolated type; Maximum load resistance 900Ω

Transmission output range: freely selectable within the measurement range

Power supply: 100-240VAC; 50/60Hz 10VA (max.)

Temperature compensation range: 0℃ to 40℃

Ambient temperature: −5℃ to 45℃

External dimensions: 48 (W) mm × 96 (H) mm × 115 (D) mm

Mass: Approx. 400 g

Compatible sensors:

- Sensor: 5400, 5405

- Probe: DP-100

Regulatory certification: CE marking, FCC rules

Details

Datasheet
