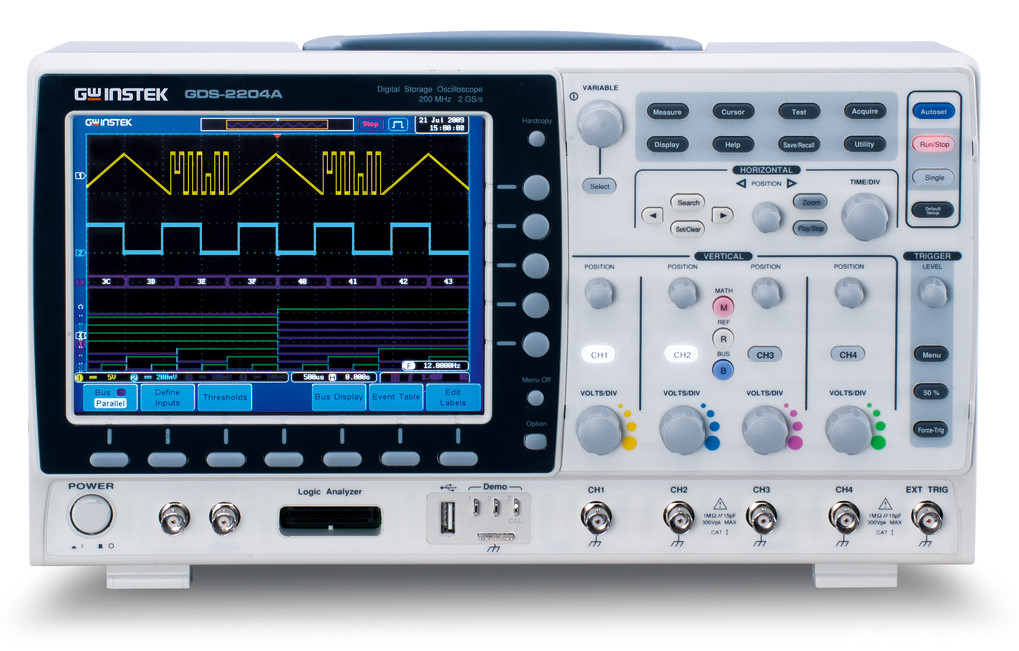

GW INSTEK GDS-2202A GPIB デジタルオシロスコープ (DS2-08LA; 200Mhz; 2 CH,2Gsa/s; GPIB)

  • 生産者:GW INSTEK
    Model: GDS-2202A GPIB
    起源: Taiwan
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 今すぐ注文
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Channels: 2+EXT

Sampling rate: 2Gsa/s

Rise Time: 1.75ns

Sensitivity: 1mV~10V/div

Accuracy: ±3% when selecting >= 2mV/div; ±5% when selecting 1mV/di.

Resolution: 8 bit

Wave length: 2Mega

Input impedance: 1MΩ//16pF

Max Input: 300Vrms, CAT I

Wave calculation: +, -, ×, ÷, FFT, FFTrms ,d/dt ,∫dt ,√ , optional (Integration, Differentiation)

Bandwidth limit: 20M/100MHz

Time Sensitivity : 1ns/div ~ 100s/div

Trigger: CH1, CH2, Line, EXT, D0-D15 (optional logic analysis)

Mode: X-Y

Logic Analysis (optional):

Bandwidth: 200MHz

Sampling rate: 500MSa/s

Wave length: 2M

Input channel: 16 numbers or 8 numbers

Screen: 8 inches, 800x600

Interface: RS232, USB 2.0, Ethernet Port, Go-NoGo BNC, SVGA Video (option), GPIB (Option)

Power: AC 100V-240V, 48 ~ 63 Hz

Dimensions: 380mm x 220mm x 145mm

Weight: 4.2Kg

Included accessories: Switchable passive probe GTP-250A-2 (x2), User manual (CD + booklet), power cord
