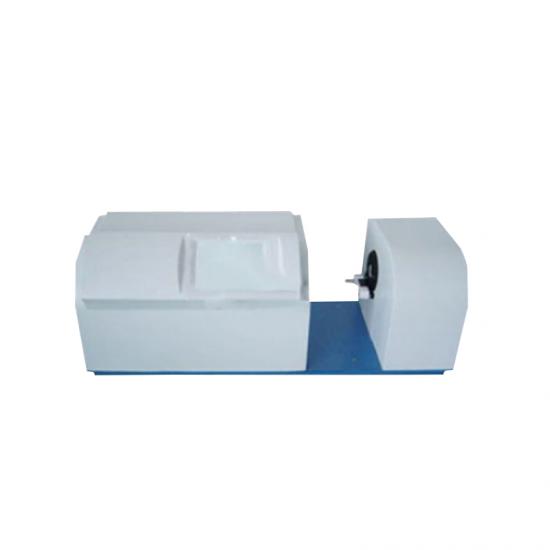

GESTER GT-N34 光透過率とヘイズメーター

Optical system: Collimated light, diffuse vision, integrating sphere receiving mode

Size of sample window: In the window: Æ25mm, Out the window: Æ21mm

Light source: light Source C (6774K), Light Source A (2856K)

Receiver: Silicon Light Battery

Electronic System: Large LCD touch screen

Minimum reading: Transmittance 0.01%, Haze 0.01%

USB interface, U-disk storage function

Measurement Range: Transmittance 0%-100.0%; Haze 0%-30.00%

Sample size:

Solid sample size: 50mm×50mm

Tank size: 50mm×50mm×10mm

Film sample size: 50mm×50mm

Calibration Sample: Æ40mm×2mm (one piece)

Machine Size: 740mm×270mm×300mm

Weight: 21kg

Power: 220V±22V 50Hz±1 Hz (Specified by user)

Environment condition: 5℃~35℃

Transmittance accuracy: ≤1%

Haze Accuracy: ≤±0.1%, when haze ≤ 0.5%; ≤±0.3%, when haze>0.5%

Translucent Repeatability: 0.5%

Haze Repeatability: 0.05% when haze ≤ 0.5%; 0.1%, when haze>0.5%

Optional Accessories: Calibration Sample
