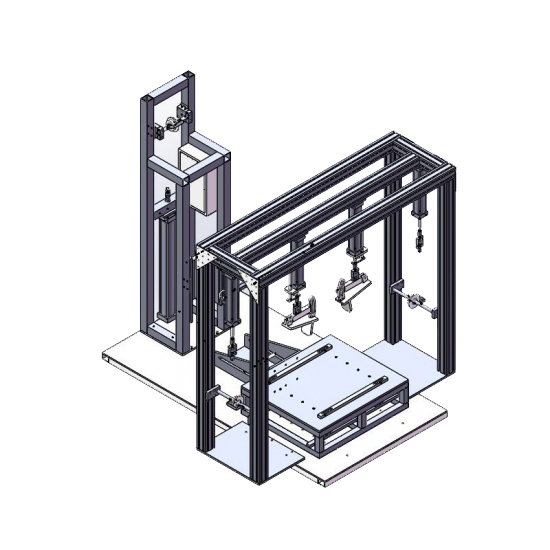

GESTER GT-LB02 アームレストとシートバック試験機 (2000N)

The tester tests the strength and durability of the arm, seats, back or other parts by simulating the loading of the seats during routine use.

Load capacity: 2000N

Force device stroke: 0-80cm

Stroke range: 60-160cm

Load Angle: 0~10° (The angle to the vertical is adjustable)

Test speed: 5~40 times/min

Testing time: 0-99999 (can be adjustment)

Control method: PLC control D1-1

Dimension (WxDxH): 150x150x190cm

Weight: 600kg

Power: 1 φ, AC 220V 50HZ

Standard Accessories:

2 pcs: GT-LBO1-3 Smaller seat loading pad;

2 pcs GT-LBO1-5 Local loading pad;

2 pcs: GT-LBO1-8 203mm loading pad;

2 pcs: Arm rest loading pad;

1 pc: GT-LBO1-10B BIFMA Cumulative Weight;

1pc: Seat back fixture;

1pc: Bifma Arm  rest pull-down loading pad;

1pc: Stationary fixture;

2pcs: Stops
