FLUKE FLUKE-709H 校正機 (with HART Communications / Diagnostics)

Detailed Specifications

Functions mA source, mA simulate, mA read, mA read/loop power, and volts read.

Ranges mA (0 to 24 mA) and Volts (0 to 30 V DC)

Resolution 1 µA on mA ranges and 1 mV on voltage range

Accuracy 0.01% ± 2 counts, all ranges (@23° ± 5°C)

Operating temperature range -10°C to 55°C (14°F to 131°F)

Humidity range 10 to 95% non-condensing

Stability 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C

Display 128 x 64 pixels, LCD Graphic w/backlight, .34 high digits

Power 6 AAA alkaline

Battery life 40 hours typical

Loop compliance voltage 24 V DC @ 20mA

Over-voltage protection 240 V AC

Overload current protection 28 mA DC

EMC EN61326 Annex A (Portable Instruments)

Dimensions (L x W x D) 15 x 9 x 3 cm (6 x 3.6 x 1.3 in)

Weight 0.3 kg (9.5 oz)

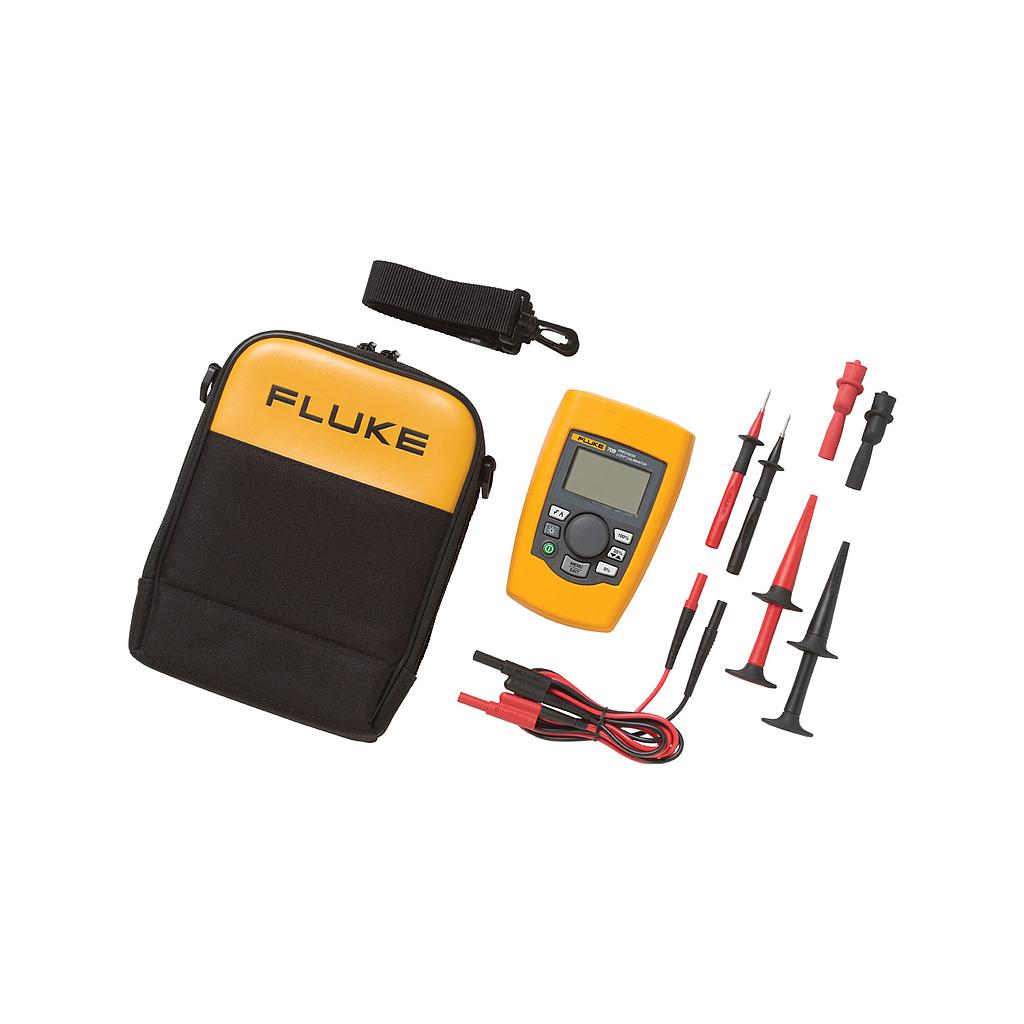

Includes:

754-8016 Alligator Clip Set

75X-8014 Stackable Lead Set

TP220-4201 Test Probes

AC280-5001 SureGrip Hook Clips

Soft Case

Six AAA Batteries (Installed)

Product Manual CD-ROM

Quick Reference Guide

Safety Information
