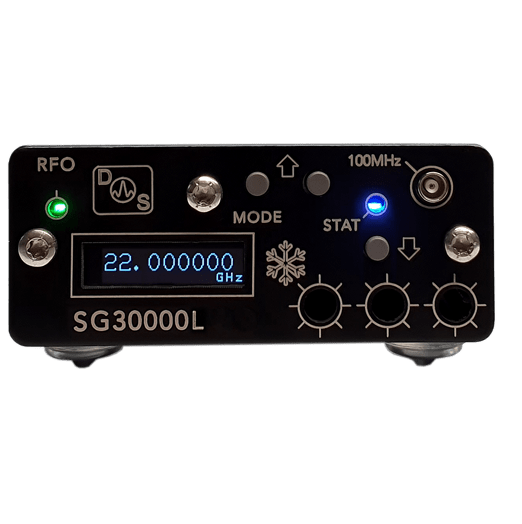

DS INSTRUMENTS SG30000L 標準信号発生器 (0.05 – 30GHz)

  • 生産者:DS INSTRUMENTS
    Model: SG30000L
    品物を保証します: 12 Month
    • 要件クオート Request a Quotation
  • 連絡先
    • カートへ追加
    • 今すぐ注文
  • 전화번호: いい価格のため、連絡しなさい
    ホットライン: (+84) 968060220
    電話番号: +84 (24)62923267

Output frequency range covering 0.05 – 30GHz

Low band SMA port: LF-13GHz

High band 2.92mm port: 13-30GHz

Power control (0.1 – 13Ghz): -10dBm to +10dBm (vernier only – no steps)

Power control (13 – 30GHz calibrated): -20dBm to +10dBm (0.5dB steps & vernier)

Max output power in un-calibrated mode: +13dBm typical

Excellent phase noise: -90dBc at 22GHz at 10KHz offset

Harmonic levels: < -12dBc typical

Extremely small frequency step size (2Hz)

External 10MHz reference input (MCX jack)

Details

Datasheet
