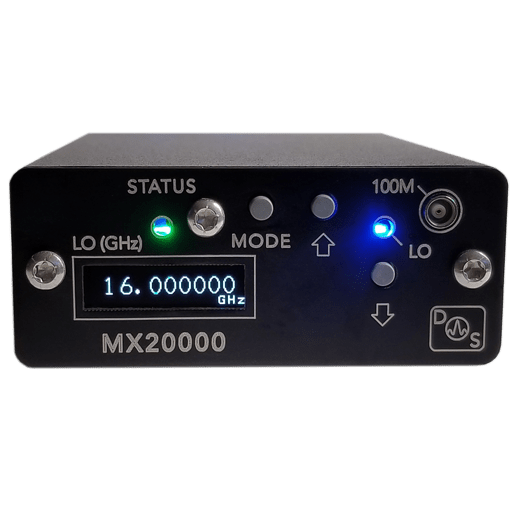

DS INSTRUMENTS MX20000 統合-LORFミキサー (10 – 22GHz)

Integrated 12 – 22GHz low-noise programmable local oscillator

RF range: 10 – 22GHz

IF range: LF to 6GHz

High RF input P1dB > +12 dBm

Low LO leakage:< -30 dB typical

LO phase noise at 18GHz (10KHz offset): ~85 dBc

Low conversion loss (8-12dB typical)

Return loss: 10 dB typical

Reference Frequency: ±280PPB 10MHz TCXO & 100MHz VCXO
