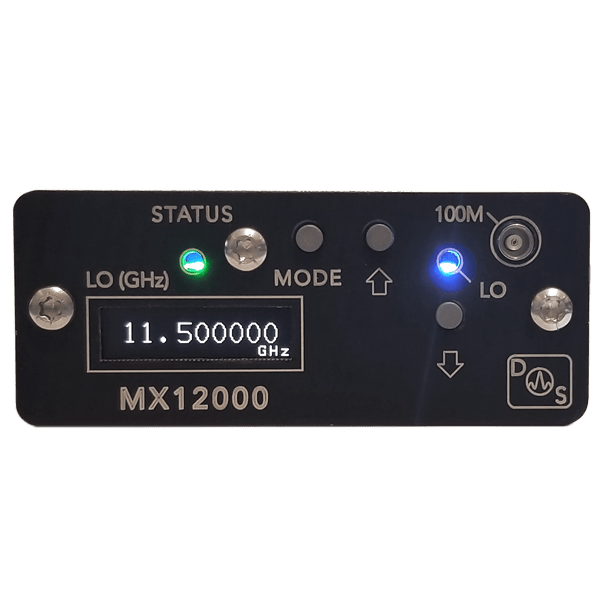

DS INSTRUMENTS MX12000 統合LOミキサー (5 - 6000MHz, 5 – 14GHz)

Integrated 5 – 14GHz programmable local oscillator

IF range: 5 to 6000MHz

RF range: 5 – 14GHz

RF input P1dB > +10dBm

Low LO leakage:< -30 dB typical

LO phase noise at 12GHz (10KHz offset): 86dBc

Low conversion loss (6-10dB typical)

Return loss: > 10 dB

Reference source: ±280PPB 10MHz TCXO & 100MHz VCXO

Datasheet
