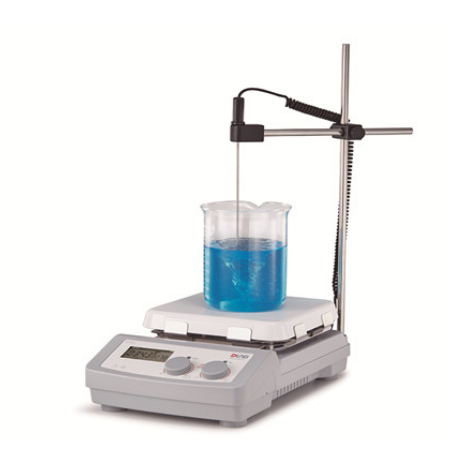

DLAB MS7-H550-Pro LCD Digital 7’’ Square Hotplate Magnetic Stirrer (~550°C; 100~1500rpm)

Work plate dimension (WxD): 184x184mm (7 inch)

Work plate material: Glass ceramic

Motor type: Brushless DC motor

Stirring positions: 1

Max. stirring quantity (H2O): 20L

Max. magnetic bar (length): 80mm

Speed range: 100~1500rpm; resolution: ±1rpm

Speed display: LCD

Temperature display: LCD

Heating temperature range: Room Temp.~550°C, increment: 1°C

Temperature control accuracy: ±1°C (<100°C); ±1%(>100°C)

Overheating protection: 580°C

Temperature display accuracy: ±0.1°C

External temperature sensor: PT1000 (accuracy: ±0.2)

"Hot" warning: 50°C

Data connector: RS232

Protection class: IP21

Motor rating input: 18W

Motor rating output: 10W

Power: 1050W

Heating output: 1000W

Voltage: 100~120/200~240V; 50/60Hz

Dimension (WxDxH): 215x360x112mm

Weight: 5.3kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose suitable power supply below:

+ US plug, 100V~120V/50Hz/60Hz

+ Cn plug, 200V~240V/50Hz/60Hz

+ Euro plug, 200V~240V/50Hz/60Hz

+ UK plug, 200V~240V/50Hz/60Hz

Optional accessories (refer to datasheet page 72-73)
