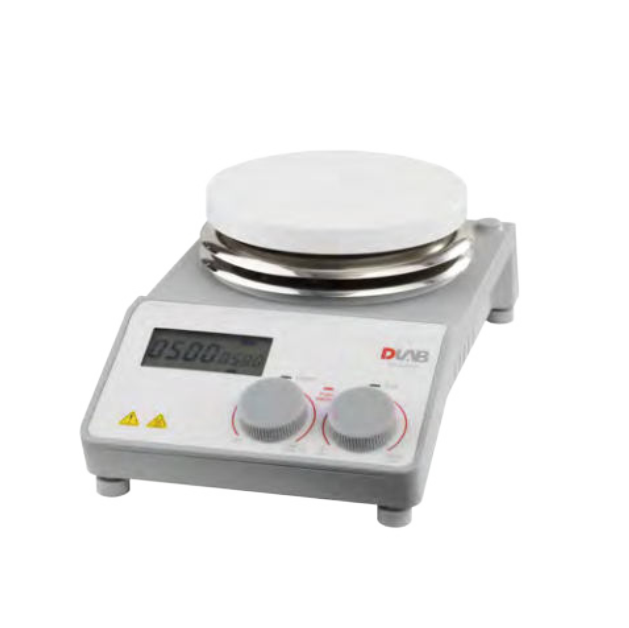

DLAB MS-H-ProA package 1 LCDデジタルマグネチックホットプレートスターラー (~340°C; 100~1500rpm; with PT1000A&protective cover)

Work plate dimension: φ135mm (5inch)

Work plate material: Aluminum cover with ceramic coating

Motor type: Brushless DC motor

Heating temperature range: Room temp.~340°C, increment: 1°C

Temperature display accuracy: ±0.1°C

Speed range: 100~1500rpm

Resolution: ±1rpm

Max. stirring quantity [H2O]: 20L

Speed display: LCD

Temperature display: LCD

Max. magnetic bar [length]: 80mm

Temperature control accuracy: ±1°C (<100°C); ±1%(>100°C)

External temperature sensor: PT1000 (accuracy: ±0.2°C)

Over temperature protection: 420°C

"Hot" warning: 50°C

Data connector: RS232

Protection class: IP21

Voltage: 100~120/200~240V; 50/60Hz

Heating power: 600W

Power: 650W

Motor rating input: 18W

Motor rating output: 10W

Dimension (WxDxH): 280×160×100mm

Weight: 2.8kg

Permissible ambient temperature and humidity: 5~40°C; 80%RH

Please choose suitable power supply below:

+ US plug, 100V~120V/50Hz/60Hz

+ Cn plug, 200V~240V/50Hz/60Hz

+ Euro plug, 200V~240V/50Hz/60Hz

+ UK plug, 200V~240V/50Hz/60Hz

Included accessoriesPT1000A (18900016) & 1 protective cover 18100374 (18900019 for standalone package)
