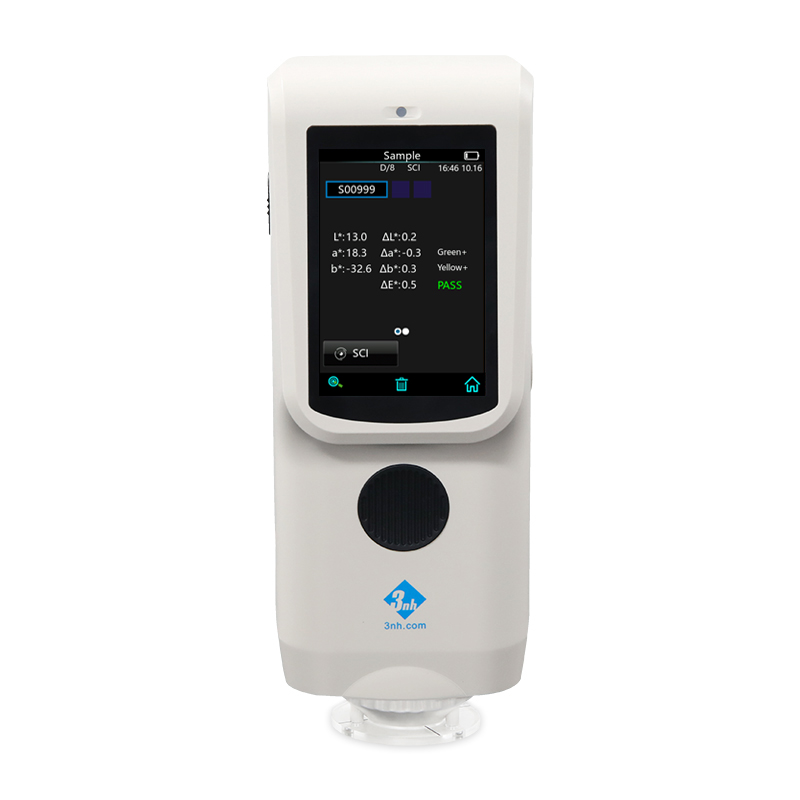

3nh TS7010 ポータブル分光測色計 (400~700nm)

Integrating Sphere Size: Φ40mm

Light Source: Combined full spectrum LED light source

Spectrophotometric Mode: Flat Grating

Senso: Silicon photodiode array (double row 24 groups)

Wavelength Range: 400~700nm

Wavelength Interval: /

Semiband Width: 10nm

Measured Reflectance Range: L:0~100; reflectivity:The reflectivity can be measured at 1 specific wavelength specified by the user (default: 550nm)

Measuring Aperture: Φ8mm

Color Space: CIE LAB,XYZ,Yxy,LCh

Color Difference Formula: ΔE*ab,ΔE*00

Other Colorimetric Index: /

Observer Angle: 10°

Illuminant: D65,A,F2(CWF)

Displayed Accuracy: 0.1

Measuring Time: About 1.5s

Measurement Mode: Single Measurement, Average Measurement(2-99times)

Dimension : L*W*H=81X71X214mm

Weight: About 460g

Battery: Li-ion battery, 6000 measurements within 8 hours

Illuminant Life Span: 5 years, more than 3 million times measurements

Display: 3.5-inch TFT color LCD, Capacitive Touch Screen

Data Port: USB

Data Storage: Standard 500 Pcs, Sample 10000 Pcs

Language: Simplified Chinese, English, Traditional Chinese

Operating Environment: 0~40℃, 0~85%RH (no condensing), Altitude < 2000m

Storage Environment: -20~50℃, 0~85%RH (no condensing)

Standard Accessory: Power Adapter, USB Cable, User Guide, White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture

Optional Accessory: USB Micro Printer, Powder Test Box

Datasheet
