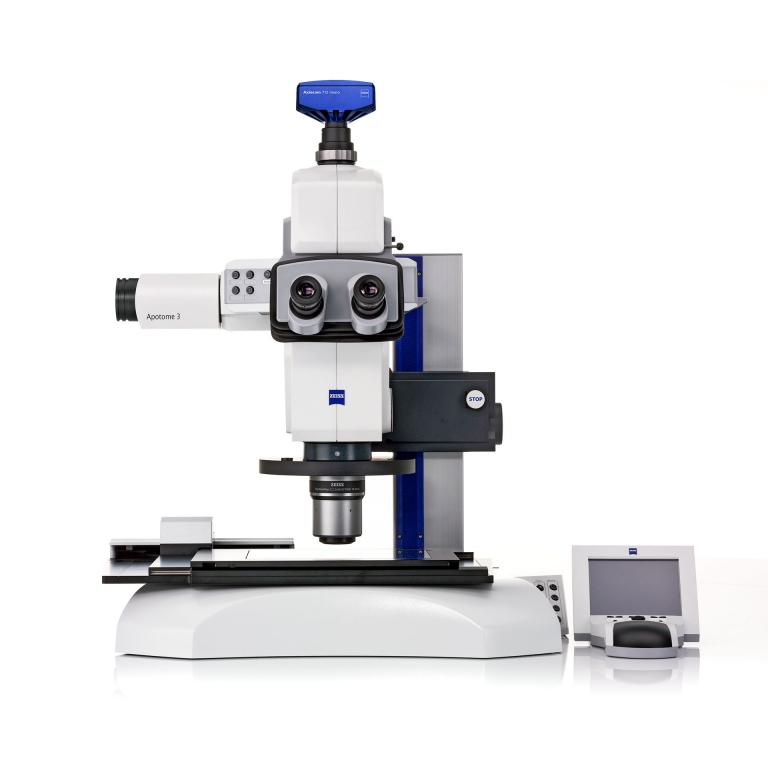

ZEISS Axio Zoom V16 Light Microscope - Stereo

PlanApo Z: 0.5x FWD (mm): 114

Parfocal length: 164 mm

Eyepiece PL 10x/23: Magnification: 3.5x ... 56x; Object field (mm): 66 ... 4.1

Eyepiece PL 16x/16: Magnification: 5.6x ... 90x; Object field (mm): 46 ... 2.9


PlanApo Z: 1.0x FWD (mm): 60

Parfocal length: 164 mm

Eyepiece PL 10x/23: Magnification: 7x ... 112x; Object field (mm): 33 ... 2

Eyepiece PL 16x/16: Magnification: 11x ... 179x; Object field (mm): 23 ... 2.9


Apo Z: 1.5x FWD (mm): 30

Parfocal length: 133 mm

Eyepiece PL 10x/23: Magnification: 10.5x ... 168x; Object field (mm): 22 ... 1.4x

Eyepiece PL 16x/16: Magnification: 16.8x ... 269x; Object field (mm): 15.2 ... 0.95


PlanNEOFLUAR Z: 1.0x FWD (mm): 56

Parfocal length: 133 mm

Eyepiece PL 10x/23: Magnification: 7x ... 112x; Object field (mm): 33 ... 2

Eyepiece PL 16x/16: Magnification: 11x ... 179x; Object field (mm): 23 ... 1.4
