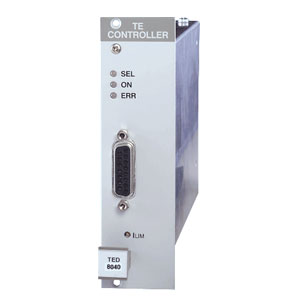

THORLABS TED8040 PRO8 Laser Diode Temperature Controller Modules (±4 A, 32 W)
Manufacturer: THORLABS Model: TED8040 - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
TEC Current Control Range: -4 to +4 A
Compliance Voltage: >8 V
Maximum Output Power: 32 W
Measurement Resolution TEC Current: 0.15 mA
Measurement Accuracy TEC Current: ±20 mA
Measurement Resolution TEC Voltage: 0.3 mV
Measurement Accuracy TEC Voltage: ±20 mV
Noise & Ripple (Typical): <2 mA
TEC Current Limit
Setting Range (20-Turn Pot): 0 to ≥4 A
Resolution D/A Converter: 1 mA
Accuracy: ±40 mA
Temperature Sensors: Thermistor (TED80X0 & TED80X0PT)
Control Range: 5 Ω to 20 kΩ and 50 Ω to 200 kΩ (Switchable)
Calibration: Exponential Form, Steinhart-Hart
Resolution: 0.3 Ω/3 Ω
Accuracy: ±2.5 Ω/±25 Ω
Stability (24h), Typical: <0.5 Ω/<5 Ω
Temperature Sensor: IC-Sensors (AD590 / AD592 / LM335) (TED80X0)
Control Range: -12.375 to +90 °C
Calibration 2-Point Linearization
Resolution: 0.0015 °C
Accuracy: ±0.1 °C
Setting Resolution: 0.025 °C
Stability (24 hr), Typical: < 0.001 °C
Temperature Sensor Pt100 Platinum: Optional Feature (PT) for TED80X0(a)
Control Range: -12.375 to +90°C
Resolution: 0.0015 °C
Accuracy: ±0.3 °C
Stability (24 hr), Typical: <0.005 °C
Temperature Sensor Pt1000 KRYO: Optional Feature (KRYO) for TED80x0; Heating Only(a)
Measurement Current: 1 mA / 400 μA
Control Range: 20 to 310 K
Resolution: 2 mK (Within Temp Range of 20 to 155 K)
Accuracy: ±2 K (Within Temp Range of 20 to 155 K)
Stability (24 hr), Typical: 0.005 K (Within Temp Range of 20 to 155 K)
(a) Pt100 and Pt1000 options replaces AD590, AD592, and LM335 sensors
All Data valid at 23 ± 5 °C and 45 ± 15% Relative Humidity
