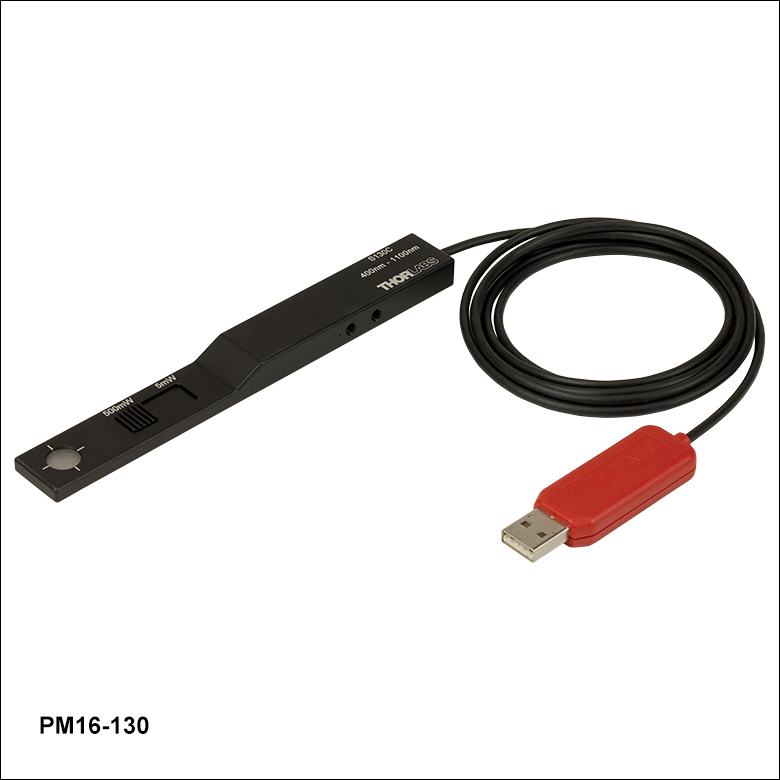

THORLABS PM16-130 Compact USB Power Meter with Slim Photodiode Sensor (400-1100 nm)

Detector Type: Silicon Photodiode

Wavelength Range: 400 - 1100 nm

Optical Power Range (with Filter): 500 pW - 5 mW (Up to 500 mW)

Aperture Size: Ø9.5 mm

Resolution: <100 pW (10 nW with Filter)

ND Filter: Reflective ND (OD2)

Housing Dimensions: 150.0 mm x 19.0 mm x 10.0 mm (5.91" x 0.75" x 0.39") 5 mm Thickness on Sensor Side

Post Mounting: 8-32 and M4 Taps

For complete power meter specifications, see the manual
