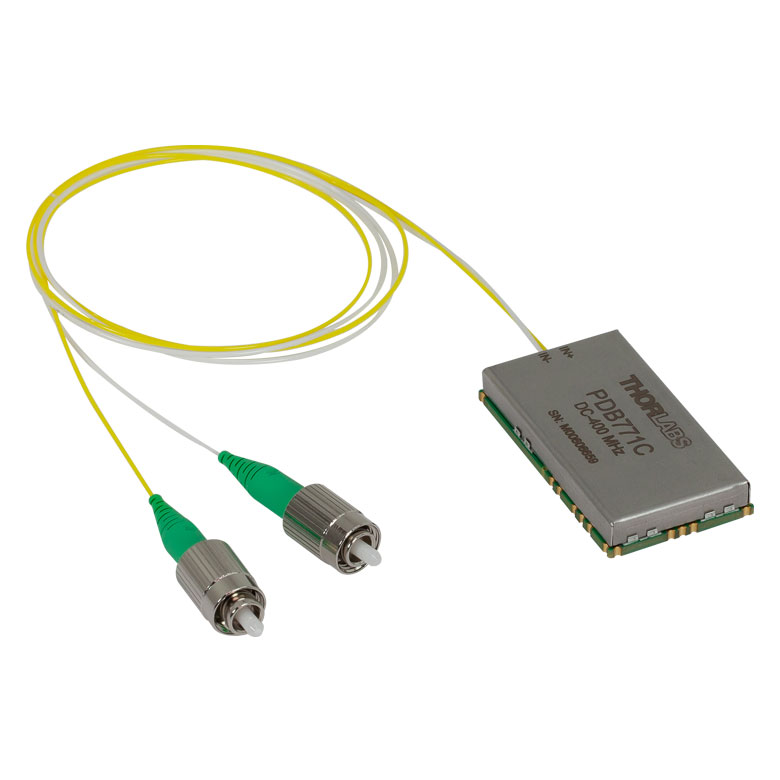

THORLABS PDB771C Balanced Amplified Photodetectors (980-1625 nm, FC/APC)

Wavelength Range:980 - 1625 nm

Typ. Max Responsivity: 0.70 A/W at 1050 nm

Bandwidth (3 dB): DC - 400 MHz

CMRR(c): >25 dB

Transimpedance Gain: 10 x 10^3 V/A

Monitor Output Bandwidth (3 dB): DC - 150 kHz

Fiber Connector: FC/APC(d)

Fiber Type: HI1060

(a) For complete specifications, see manual

(b) All specifications are valid at 23 ± 5 °C and 45 ± 15% rel. humidity (non-condensing).

(c) Common Mode Rejection Ratio

(d) 2.0 mm Narrow Key FC/APC Connector
