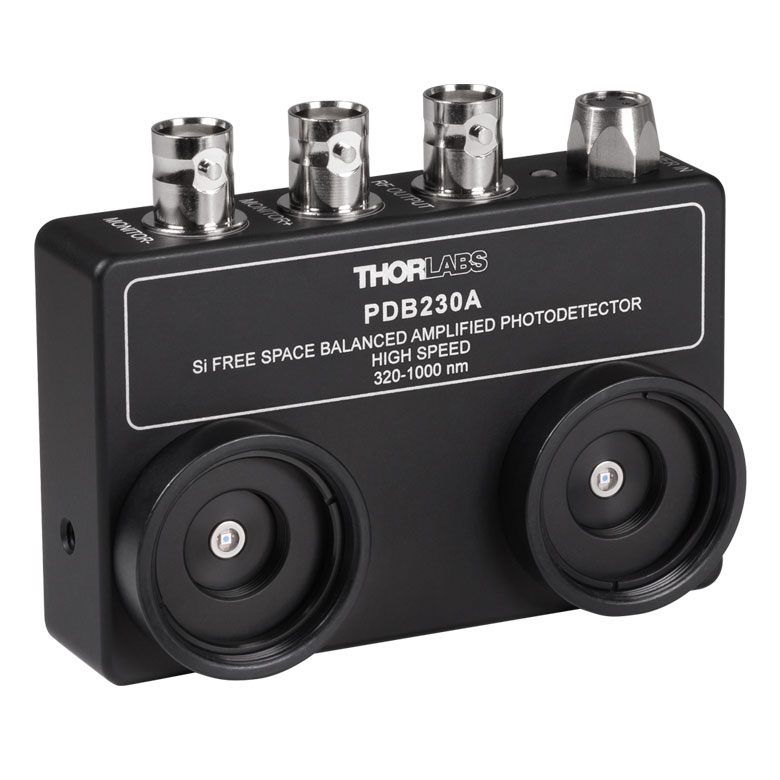

THORLABS PDB230A Free-Space Balanced Amplified Photodetectors (320-1000 nm, 8-32/M4 Combi Thread)

Detector Type: Si/PIN

Wavelength Range: 320 - 1000 nm

Typical Maximum Responsivity: 0.53 A/W @ 820 nm

Active Detector Diameter: 0.8 mm

Bandwidth (3 dB): DC - 100 MHz

Common Mode Rejection Ratio: >30 dB 35 dB (Typical)

Transimpedance Gain: High Z Load: 50 x 10^3 V/A 50 Ω Load: 24.5 x 10^3 V/A

Conversion Gain RF-Output: 26.5 x 10^3 @ 820 nm

CW Saturation Power RF-Output: 150 µW @ 820 nm

Voltage Swing RF-Output: High Z Load: ±4.0 V 50 Ω Load: ±1.9 V

Conversion Gain Monitor Outputs: High Z Load: 10 V/mW @ 820 nm

Voltage Swing Monitor Outputs (Max): High Z Load: 10 V 50 Ω Load: 1.55 V (Max)

Minimum NEP: 12 pW/√Hz (DC - 100 MHz)

Optical Inputs: Free Space

Photodiode Damage Threshold: 20 mW

Electrical Outputs: BNC, 50 Ω

RF-Output Coupling: DC (AC-Coupling Available upon Request)

Operating Temperature Range(a): 0 to 40 °C

Storage Temperature Range: -40 to 70 °C

Dimensionsb (W x H x L): 84.5 mm x 65.3 mm x 21.1 mm (3.33" x 2.57" x 0.83")

Weight: 0.2 kg (w/o Power Supply)

Included Power Supply(c): ±12 V @ 250 mA (100/120/230 VAC, 50 - 60 Hz, Switchable)
