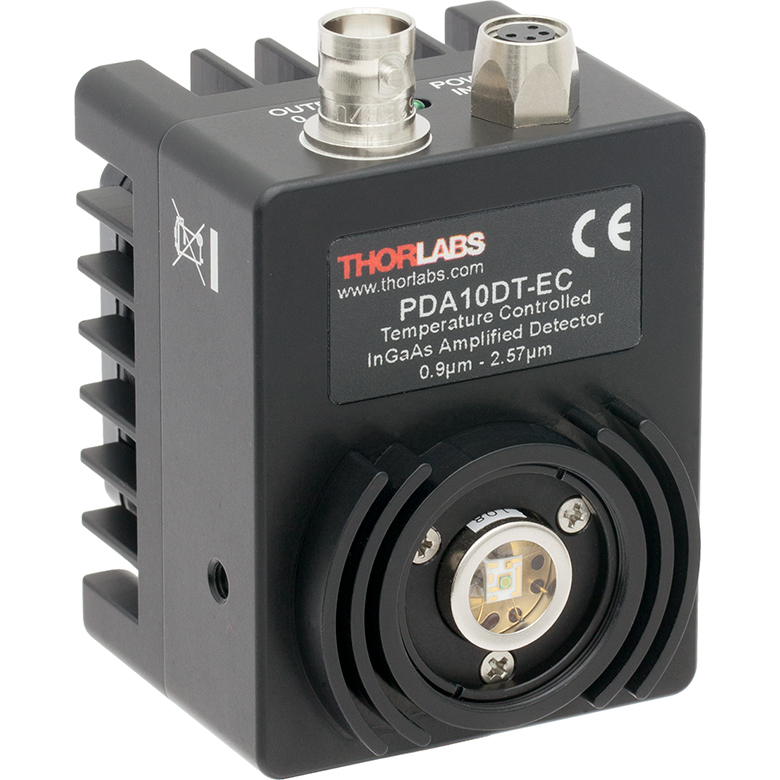

THORLABS PDA10DT-EC InGaAs Amplified Photodetector with Thermo electric Cooler ( 0.9 - 2.57 µm)

Wavelength Range (λP): 0.9 - 2.57 µm

Peak Wavelength: 2.3 µm

Peak Responsivity: 1.3 A/W (Typ.) at Peak Wavelength

Active Area: 0.8 mm2 (Ø1.0 mm)

Window Material: Borosilicate Glass

Gain Settings: 8 Steps: 0, 10, 20, 30, 40, 50, 60, or 70 dB

Bandwidth Settings: 8 Steps from 500 Hz to 1 MHz

Noise-Equivalent Power (NEP): 2.11 pW/Hz1/2 @ DC - 2.5 kHz (for 70 dB Gain and 1 MHz Bandwidth)

More detailed specifications are available in the Manual.
