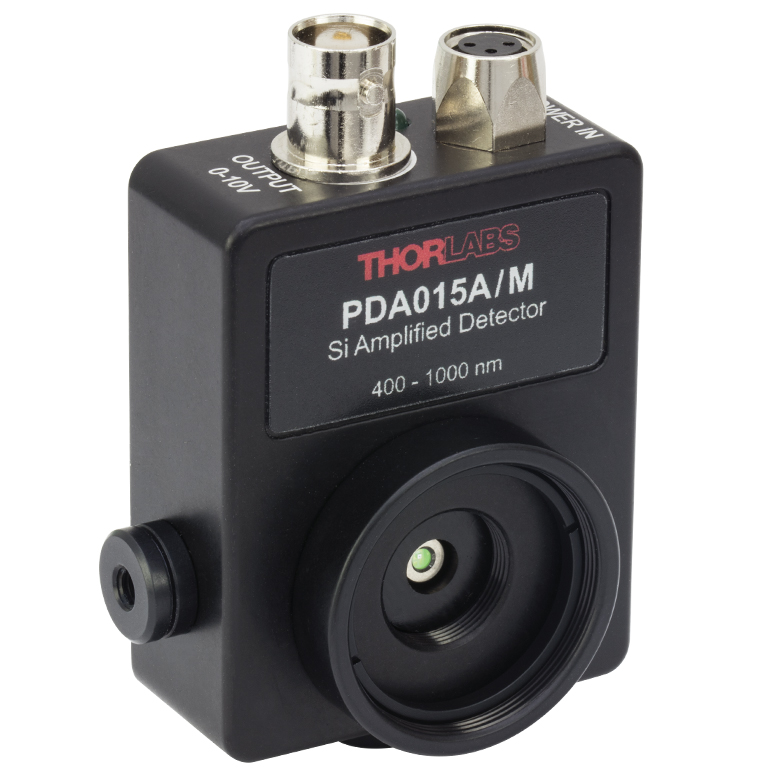

THORLABS PDA015A/M Si Amplified Photodetectors (400-1000 nm, Fixed Gain, M4 Taps)

Wavelength Range: 400 - 1000 nm

Bandwidth Range: DC - 380 MHz

Rise Time: 1.0 ns

Gain Hi-Z Load: 50 kV/A

Gain 50 Ω Load: 25 kV/A

NEP: 36 pW/Hz^1/2

Active Area(c): 0.018 mm^2 (Ø150 µm)

Operating Temperature Range: 10 to 40°C

Power Supply Included: Yes

(c) View photos of the detector elements in manual

(d) When long-term UV light is applied, the product specifications may degrade. For example, the product’s UV response may decrease and the dark current may increase. The degree to which the specifications may degrade is based upon factors such as the irradiation level, intensity, and usage time.

(e) The detector active area surface is flush with the front the housing.

(f) Femtosecond Pulsed Gain

(g) CW Gain
