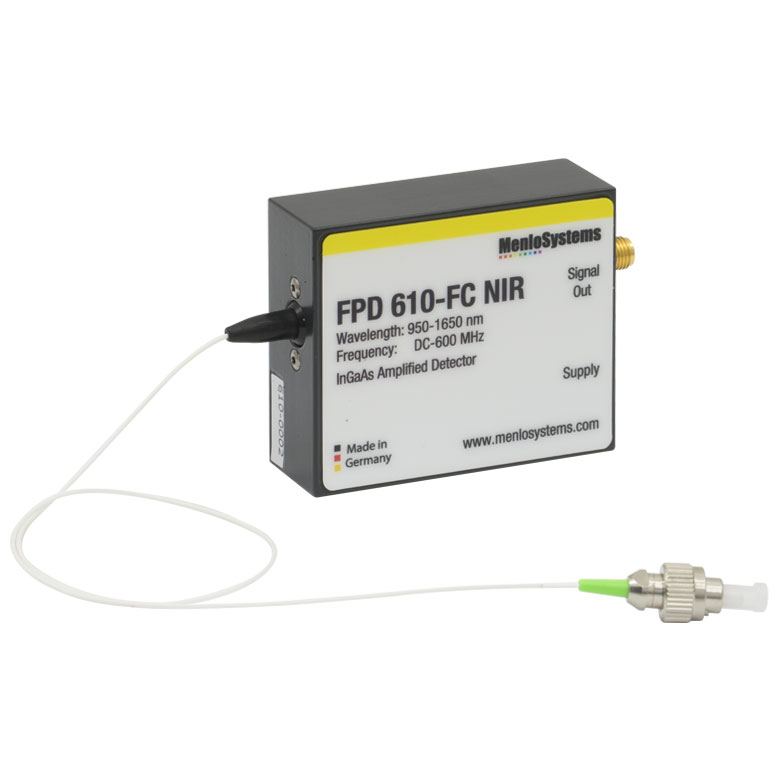

THORLABS FPD610-FC-NIR InGaAs Fiber-Coupled Amplified Photodetector (Fixed Gain, 950-1650 nm)
Manufacturer: THORLABS Model: FPD610-FC-NIR - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Material: InGaAs
Optical Input: SMF28 pigtail with FC/APC
Spectral Range: 950 - 1650 nm
Saturation Limit: <100 µW
Damage Threshold: 3 mW
Frequency Range: DC - 600 MHz
3 dB Bandwidth: DC - 500 MHz
Rise Time: 1 ns
Gain (fs Pulsed Input)(a): 2 x 10^6 Vpp/W
Gain (CW Input)(a): 5 x 10^5 VppW
Dark State Noise Level: -80 dBm/Hz^1/2 (up to 5 MHz). -100 dBm/Hz^1/2 (5 to 600 MHz)
NEP (calculated): 5.6 pW/Hz^1/2
Output Impedance: 50 Ω
Output Coupling: DC
Output Signal: 0 - 1 V
Supply Voltage / Max. Current Consumption: +5 VDC / <250 mA. -12 VDC / <50 mA
Output Connector: SMA female
Operating Temperature: 10 to 40°C
Storage Temperature: -20 to +85°C
Storage Humidity (RH): 10% to 90%
Device Dimensions: 60 mm x 50 mm x 20 mm (2.4" x 2.0" x 0.79")
(a)These detectors are optimized for femtosecond pulses within the specified frequency range. Gain will be approximately a factor of 10 lower for CW operation.
