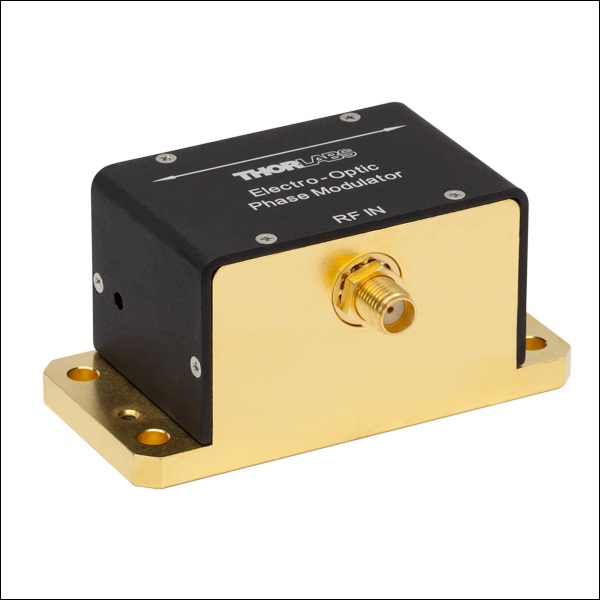

THORLABS EO-PM-R-20-C1 Electro-Optic Resonant Phase Modulator (600-900 nm)
Manufacturer: THORLABS Model: EO-PM-R-20-C1 - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Modulator Crystal: Lithium Niobate (LiNbO3) Doped with MgO
Wavelength Range: 600 to 900 nm
Clear Aperture: 2 mm Diameter
Input Connector: SMA Female
Resonant Frequency Range: 20 MHz(c)
Half Wave Voltage, Vπ: 15 V at 633 nm(d) (Typical)(See manual)
Extinction Ratio: >10 dB
Input Capacitance/Impedance: 50 Ohms
Max RF Input Power: 3 W (35 Vpp)
Max Optical Power Density: 2 W/mm^2 @ 532 nm, 4 W/mm^2 @ 1064 nm
(a) AM modulators operating in the -C4 band (400 - 600 nm) should only be used for AC modulation above a few Hz. Please see manual for more details.
(b) Other AR coating ranges are available upon request. Contact Tech Support for details.
(c) Resonant frequencies from 0.1 - 100 MHz are available. Contact Tech Support for details.
(d) Modulating to larger phase shifts or at longer wavelengths may cause the resonant modulator to exceed the RF power limit of 3 W, which corresponds to 35 Vpp.
