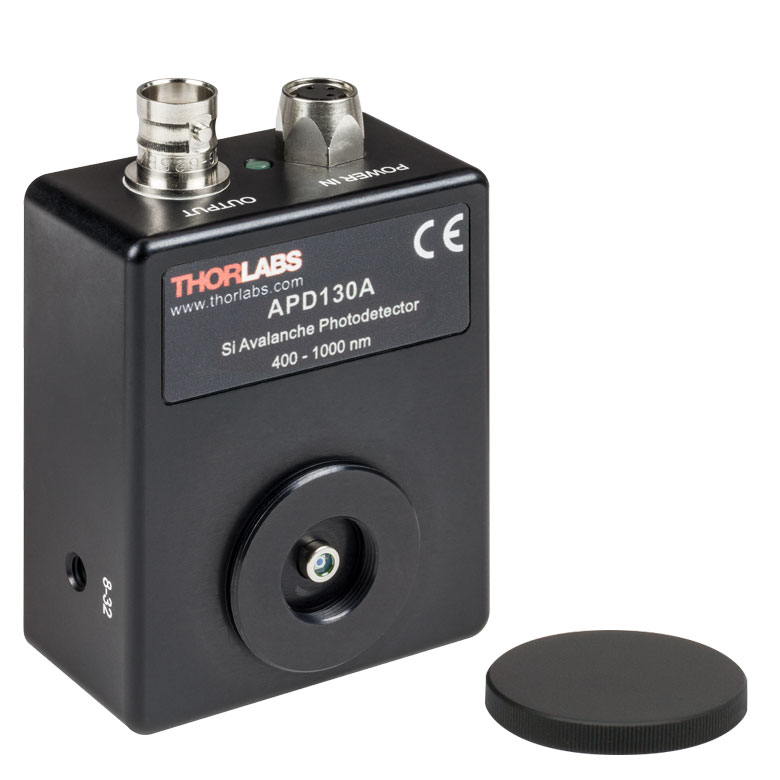

THORLABS APD130A Temperature-Compensated Si Avalanche Photodetectors (400-1000 nm, 8-32 Taps)

Key Specifications(a)

Detector Type: Silicon APD

Wavelength Range: 400 - 1000 nm

Output Bandwidth (3 dB): DC - 50 MHz

Active Area Diameter: 1 mm

Typical Max Responsivity (M = 50): 25 A/W @ 800 nm

Transimpedance Gain: 50 kV/A (50 Ω Termination). 100 kV/A (High-Z Termination)

Max Conversion Gain(b): 2.5 × 10^6 V/W

M Factor: 50

M Factor Temperature Stability(a): ±2% (Typical); ±3% (Max)

Saturation Power (CW): 1.5 µW

Minimum NEP (DC - 50 MHz)(b): 0.20 pW/√Hz

Dimensions (H x W x D): 2.97" x 2.00" x 1.08"

(a) For a complete list of specifications and responsivity graphs, please see the manual. Data are valid at 23 ± 5 °C and 45% ± 15% relative humidity (non-condensing).

(b) At the Peak Responsivity Wavelength. For more information on how NEP is calculated, please see Thorlabs' Noise Equivalent Power White Paper.
