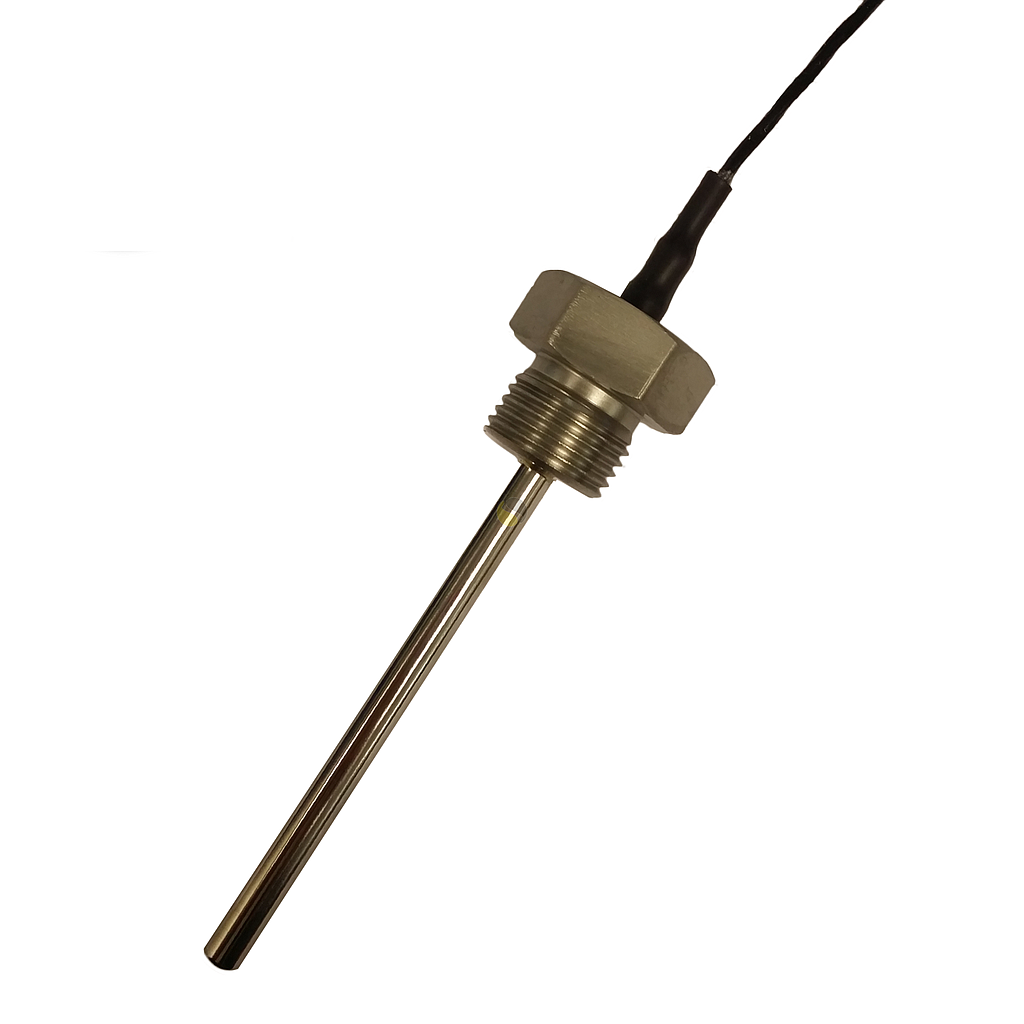

Sterling Sensors RFTHR36MM2501GP7 RTD with Process Connection (1/2" BSPP; 250x6mm 3-wire Pt100; -50~250°C)
Manufacturer: Sterling Sensors Model: RFTHR36MM2501GP7 Origin: United Kingdom - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Specification
Product | RTD with Process Connection |
Type | Pt100 3 wire |
Temp Range | -50 to 250°C |
Length | 50, 100, 150, 200 & 250mm as standard |
Diameter | 6mm |
Connection | ½” BSPP and ¼” BSPP |
Accuracy | Class B |
Material | 316 Stainless Steel |
Termination | Stripped leads |
Part Number | RFTHR |
Features
- -50 to +250 °C Temperature Range
- Pt100 Class B Sensor
- 316 Stainless Steel
- 1 metre PFA lead
Applications
- OEMs
- Vessels and Pipes
- Factory Machinery
1/2" BSPP Process Connection
Description | Part Number |
50mm x 6mm, 3 wire Pt100 Class B | RFTHR36MM0501GP7 |
100mm x 6mm, 3 wire Pt100 Class B | RFTHR36MM1001GP7 |
150mm x 6mm, 3 wire Pt100 Class B | RFTHR36MM1501GP7 |
200mm x 6mm, 3 wire Pt100 Class B | RFTHR36MM2001GP7 |
250mm x 6mm, 3 wire Pt100 Class B | RFTHR36MM2501GP7 |
1/4" BSPP Process Connection
Description | Part Number |
50mm x 6mm, 3 wire Pt100 Class B | RFTHR36MM0501DP7 |
100mm x 6mm, 3 wire Pt100 Class B | RFTHR36MM1001DP7 |
150mm x 6mm, 3 wire Pt100 Class B | RFTHR36MM1501DP7 |
200mm x 6mm, 3 wire Pt100 Class B | RFTHR36MM2001DP7 |
250mm x 6mm 3 wire Pt100 Class B | RFTHR36MM2501DP7 |
