SterlingSensors RFHYG56MM1ST0B6D Hygienic RTD (Pt100) Sensor (Ø6x150mm Long, 1.5" Tri-Clamp, -75°C~+250°C)


Specification

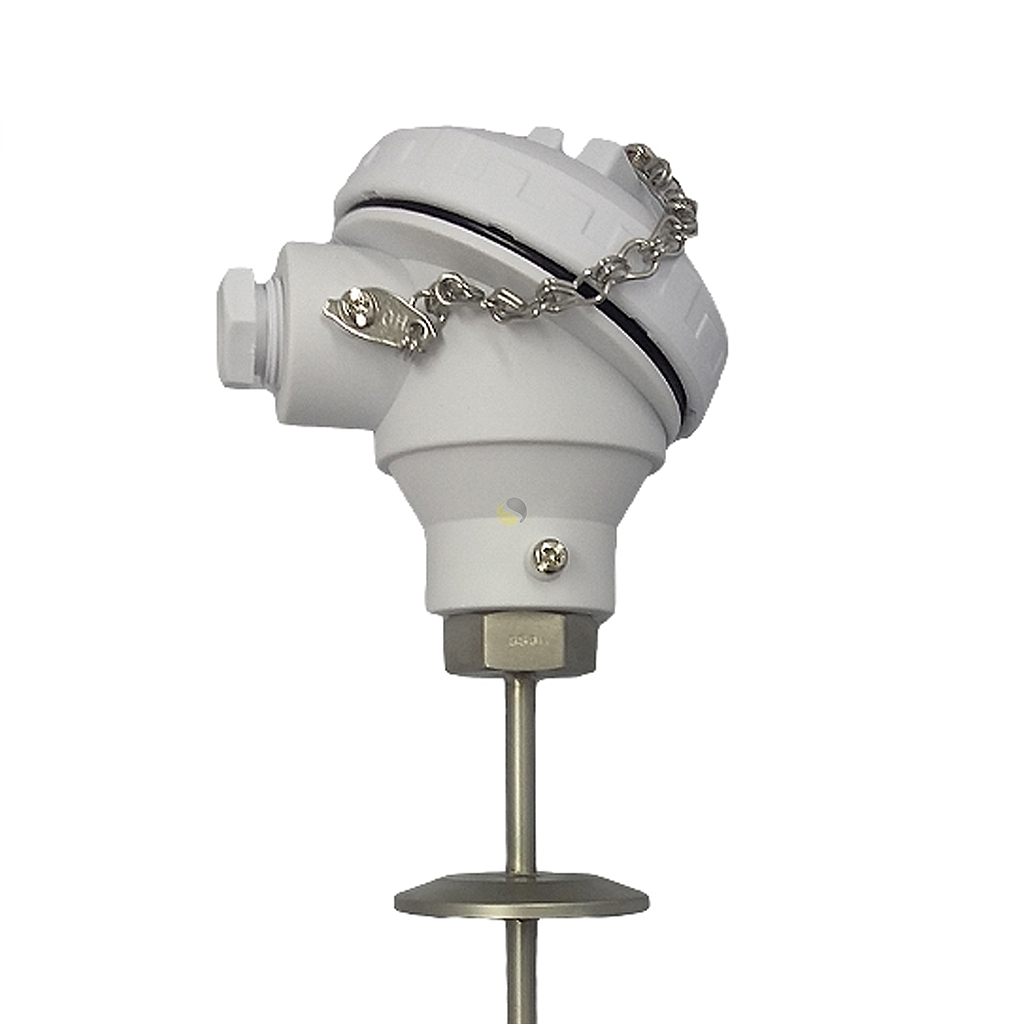

Hygienic RTD (Pt100) Sensor

Features

• Class A accuracy
• 1, 1.5 and 2 inch Tri-Clamp flange available
• 3 wire RTD configuration
• FDA approved terminal head
• IP68 rating

Application

• Food and Beverage
• Dairy
• Pharmaceutical

316 Stainless Steel Sheath with 3-wire Class A Pt100

Description

Part Number

6mm Dia x 50mm Long with 1.5" Tri-Clamp

RFHYG56MM1ST0A6D

6mm Dia x 100mm Long with 1.5" Tri-Clamp

RFHYG56MM1ST016D

6mm Dia x 150mm Long with 1.5" Tri-Clamp

RFHYG56MM1ST0B6D

6mm Dia x 50mm Long with 2" Tri-Clamp

RFHYG56MM02T0A6D

6mm Dia x 100mm Long with 2" Tri-Clamp

RFHYG56MM02T016D

6mm Dia x 150mm Long with 2" Tri-Clamp

RFHYG56MM02T0B6D

4-20 mA In Head Transmitters

Description

Part Number

RTD in-head Transmitter

IXINHP
