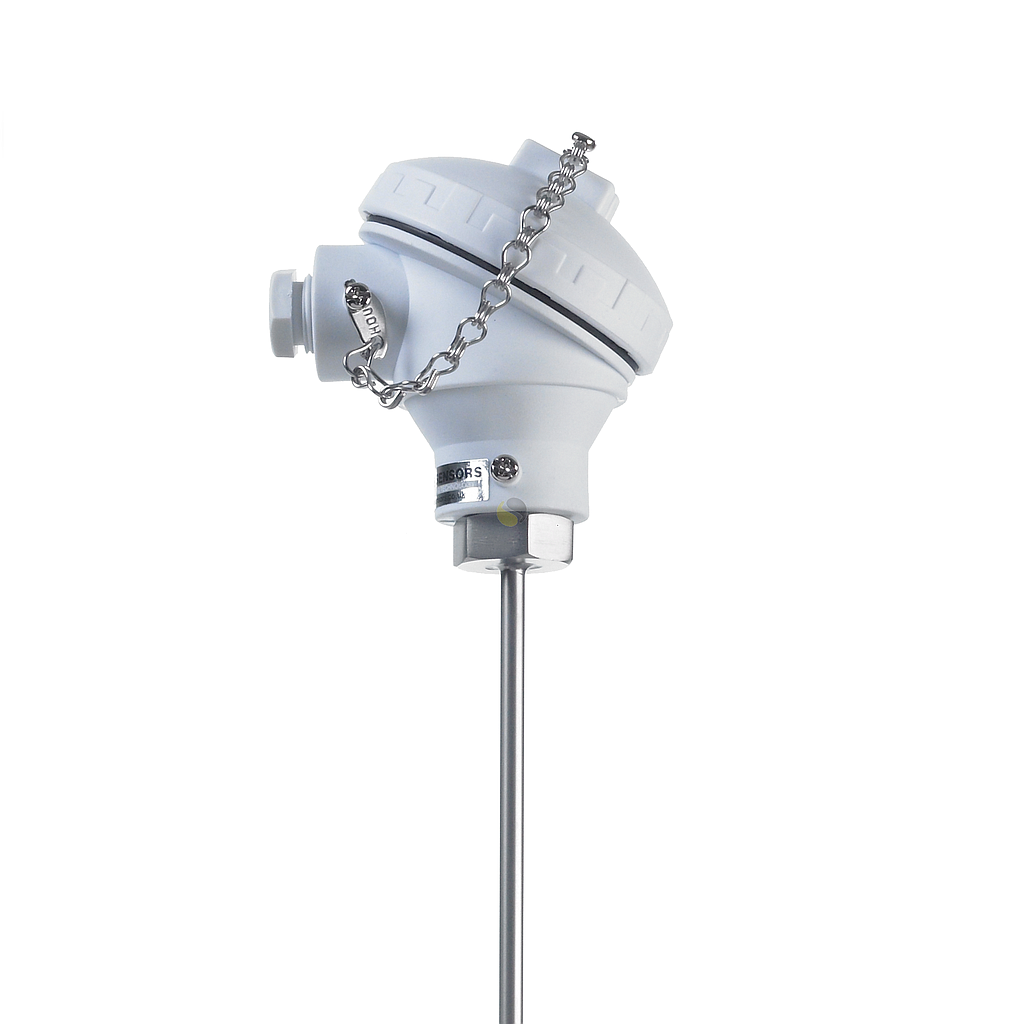

Sterling Sensors RFHAB38MM500006D Pt100 with FDA Approved (KPP) Head (3-wire class B Ø8x500mm; -50~250°C)
Manufacturer: Sterling Sensors Model: RFHAB38MM500006D Origin: United Kingdom - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Specification
Features
- IP68 weather-proof white polypropylene (KPP) head
- Pt100 class A or B
- 316 Stainless Steel
- Ceramic block or optional transmitter
Application
- Pharmaceutical
- Hygienic
- Food and Beverage
6mm Diameter Sheath
Description | Part Number |
3-wire class B 6mm dia x 150mm | RFHAB36MM150006D |
3-wire class B 6mm dia x 200mm | RFHAB36MM200006D |
3-wire class B 6mm dia x 250mm | RFHAB36MM250006D |
3-wire class B 6mm dia x 300mm | RFHAB36MM300006D |
3-wire class B 6mm dia x 400mm | RFHAB36MM400006D |
3-wire class B 6mm dia x 500mm | RFHAB36MM500006D |
3-wire class B 6mm dia x 1000mm | RFHAB36MM01M006D |
8mm Diameter Sheath
Description | Part Number |
3-wire class B 8mm dia x 150mm | RFHAB38MM150006D |
3-wire class B 8mm dia x 200mm | RFHAB38MM200006D |
3-wire class B 8mm dia x 250mm | RFHAB38MM250006D |
3-wire class B 8mm dia x 300mm | RFHAB38MM300006D |
3-wire class B 8mm dia x 400mm | RFHAB38MM400006D |
3-wire class B 8mm dia x 500mm | RFHAB38MM500006D |
3-wire class B 8mm dia x 1000mm | RFHAB38MM01M006D |
Transmitters
Description | Part Number |
RTD in-head Transmitter | IXINHP |
ATEX RTD | IXATEP |
