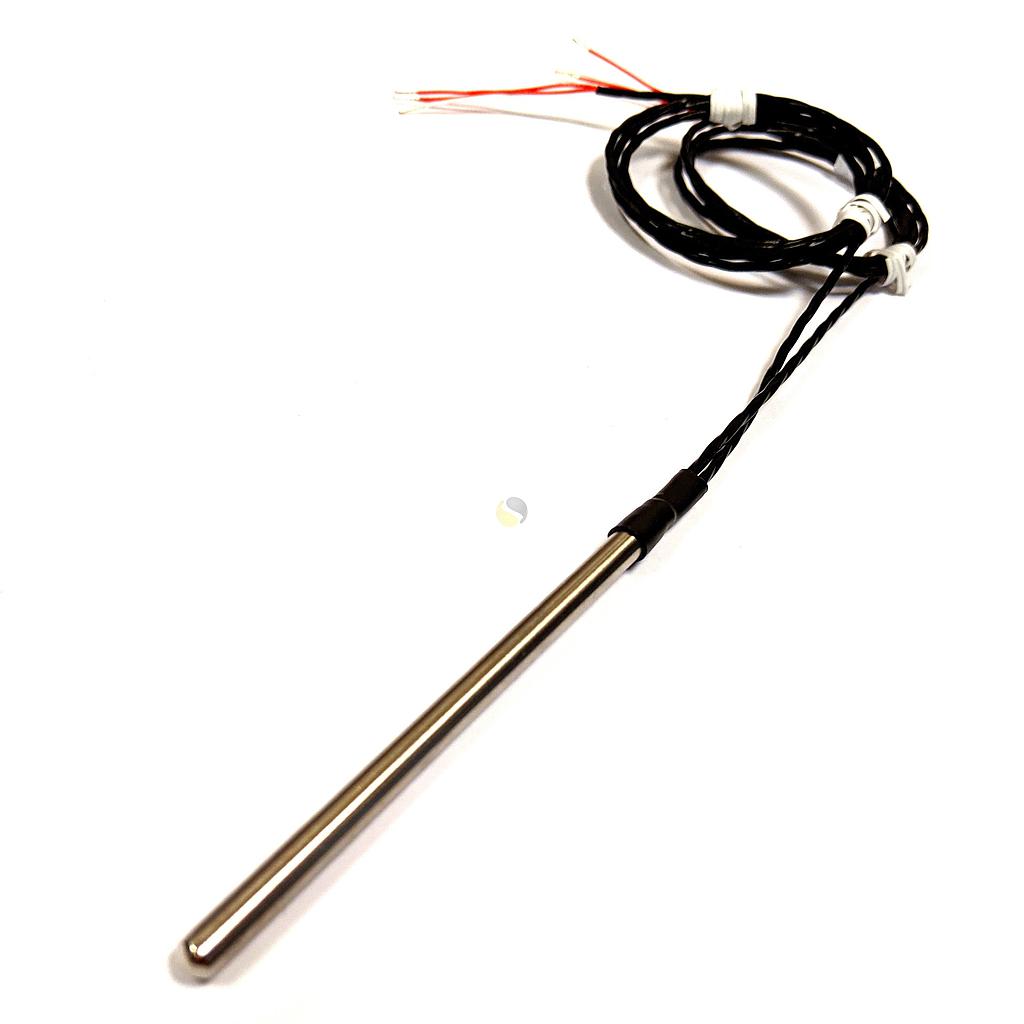

SterlingSensors RFCSD36MM2001M67 Duplex RTD Probe with Flexible Lead Wire (3-wire class B 6x200mm; -75~+250 °C)


Specification

Specification for Duplex RTD Probe

Features

  • 2x Pt100 elements in one sensor
  • 316 Stainless Steel sheath
  • Can be used in 2 or 3-wire configuration
  • PFA lead wires can be supplied to any length

Applications

  • Where 2 independent sensors are required
  • To connect controllers & loggers simultaneously
  • Process measurement & Control
  • Ovens, Incubators and Sterilisers
  • Pt100 Class B Detector with 6mm Diameter Sheath

    Description

    Part Number

    3-wire class B 6mm x 50mm

    RFCSD36MM0501M67

    3-wire class B 6mm x 100mm

    RFCSD36MM1001M67

    3-wire class B 6mm x 150mm

    RFCSD36MM1501M67

    3-wire class B 6mm x 200mm

    RFCSD36MM2001M67

    3-wire class B 6mm x 250mm

    RFCSD36MM2501M67
