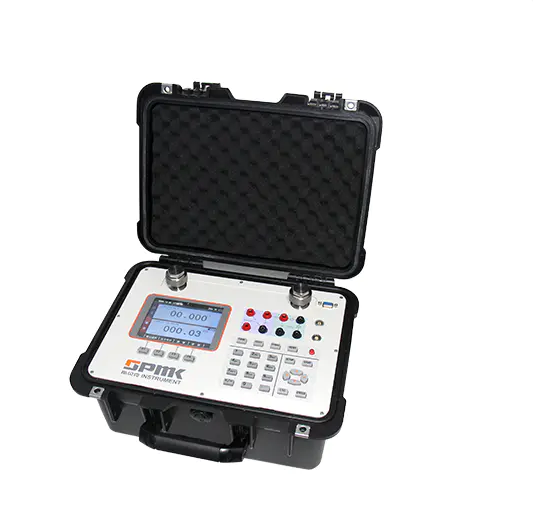

SPMK 221G Automatic Pressure Calibrator

Pressure control fluctuation: 0.005%FS

Display screen: 5.6 x LCD Screen(640×480;4/5/6 digit display optional

Environment for usage: Ambient temperature: (0~50)℃, Storage humidity: <90%, Atmospheric pressure: (86~106)kPa.

Pressure port: M20×1.5 F, 1/4NPT F, 1/4BSP F, 1/2NPT F, 1/2BSP F. 2 ports.

Dimension: (385×298×196)mm;  Weight: 11kg (Pneumatic)

Voltage measurement:

Range (-30~30)V

Resolution 0.1mV

Accuracy ±(0.01%RD+0.005%FS)

Current measurement:

Range (-30~30)mV

Resolution 0.1μA

Accuracy ±(0.01%RD+0.005%FS)

On-off detection: If the switch has the inspection voltage, the voltage range is (3.0~24.0) V

Current output:

Range (0~22)mV

Resolution 1μA

DC24V: DC24V, Maximum load capacity 50mA
