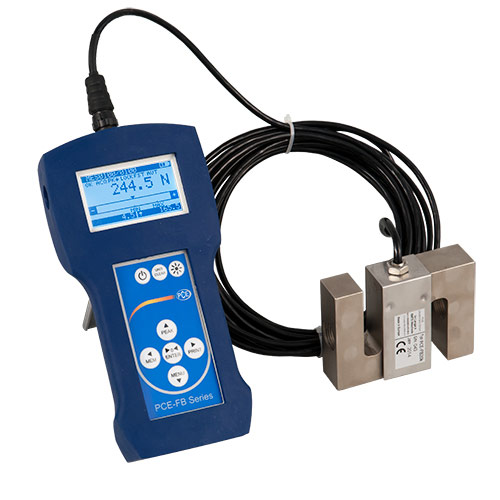

PCE PCE-FB 5K Force Gauge (5,000 N/500 kg )

Specification

Dynamometers with external dynamometric cell: Measuring range / resolution

PCE-FB 5K: 5,000 N (500 kg)  /  1 N ( 100 g)

Uncertainty in measurement: ±0.1 % of measurement range

Gravity zone: manually adjustable or per GPS data

Measurand: N, g, lb, oz, kg, kgf, lbf, ozf

Calibration: with external F2 weights

Max. overload: +/- 20 % above measuring range

Sampling rate: 10 samples / sec. or 40 samples / sec.

Measurement function: Compressive and tensile force measurement / PEAK function (MIN- MAX Hold)/ threshold measurement/ real-time measurement with software

Display: Graphic- Display 61 x 34 mm / automatic Display adjustment / background lights

Menu navigation multilingual: German, English, Spanish

Data storage facilities: internal storage and Mini SD memory card (Internal storage limited to a max. of 6,400 measurements)

Data storage: manually- by key press; automatically- 0.025 s - 99.9 sec. (adjustable)

Interface: serial RS-232, 9-pole and USB

Software: incl. software via download to evaluate and control

Surrounding conditions: - 10 °C ... +40 °C

Power Supply: 4x Ni-MH 2700 mAh AA batteries (replaceable) or via Adapter ~230 V/12 V; 1.2 A incl.

auto OFF function option

Battery life time: approx. 20 hrs. (without background lights approx. 45 hrs.)

Dimensions: 210 x 110 x 40 mm

Internal measuring cell: part for force input: 11 mm long, M6 x 9 mm winding

Cable length of external dynamometric cell: approx. 3 m

Weight without dynamometric cell: approx. 400 g (without the dynamometric cell)

Delivery contents

1 x dynamometer  PCE-FB 5K

1 x dynamometric cell incl. ring screws

1 x AC adapter

1 x RS-232 data cable

2 x carry bag

Detail

Manufacturer: PCE-Anh

Model : PCE-FB 5K

Warranty : 12 months


Specification

Dynamometers with external dynamometric cell: Measuring range / resolution

PCE-FB 5K: 5,000 N (500 kg)  /  1 N ( 100 g)

Uncertainty in measurement: ±0.1 % of measurement range

Gravity zone: manually adjustable or per GPS data

Measurand: N, g, lb, oz, kg, kgf, lbf, ozf

Calibration: with external F2 weights

Max. overload: +/- 20 % above measuring range

Sampling rate: 10 samples / sec. or 40 samples / sec.

Measurement function: Compressive and tensile force measurement / PEAK function (MIN- MAX Hold)/ threshold measurement/ real-time measurement with software

Display: Graphic- Display 61 x 34 mm / automatic Display adjustment / background lights

Menu navigation multilingual: German, English, Spanish

Data storage facilities: internal storage and Mini SD memory card (Internal storage limited to a max. of 6,400 measurements)

Data storage: manually- by key press; automatically- 0.025 s - 99.9 sec. (adjustable)

Interface: serial RS-232, 9-pole and USB

Software: incl. software via download to evaluate and control

Surrounding conditions: - 10 °C ... +40 °C

Power Supply: 4x Ni-MH 2700 mAh AA batteries (replaceable) or via Adapter ~230 V/12 V; 1.2 A incl.

auto OFF function option

Battery life time: approx. 20 hrs. (without background lights approx. 45 hrs.)

Dimensions: 210 x 110 x 40 mm

Internal measuring cell: part for force input: 11 mm long, M6 x 9 mm winding

Cable length of external dynamometric cell: approx. 3 m

Weight without dynamometric cell: approx. 400 g (without the dynamometric cell)


Delivery contents

1 x dynamometer  PCE-FB 100K

1 x dynamometric cell incl. ring screws

1 x AC adapter

1 x RS-232 data cable

2 x carry bag
