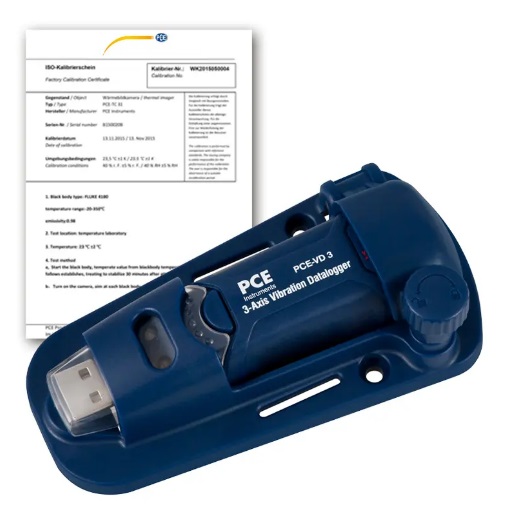

PCE VD 3-ICA Vibration Meter (± 16 g; ISO Calibration Cert.)

Measurement range: ±16 g

Accuracy: ± 0.5 g

Resolution: 0.004 g

Frequency range: 0 ... 60 Hz

Memory: 8 Mbit

normal measuring mode: 168042 records

motion detection: 112028 records

Measurement rate / Record interval: 50 ms ... 12 hours

Power supply: 1 x 3.6 V, 1/2 AA, 14250, battery

Power consumption: ca. 2.8 mA during a measurement; <1.5 µA idle

Battery life: ca. 400 hours

Status display: via 2 LEDs (recording in progress / alarm)

Interface: USB

Operating conditions: 0 ... 40 ºC (32 ... 104 ºF), 10 ... 75 % RH non-condensing

Storage conditions: -10 ... 60 °C (14 ... 140 °F), 10 ... 90 % RH, non-condensing

Dimensions of device: 95 x 28 x 21 mm / 3.7 x 1.1 x 0.8"

Dimensions of wall bracket: 106 x 56 x 33.5 mm / 4.2 x 2.2 x 1.3"

Weight: 25 g / 0.88 oz

Delivery Scope:

1 x PCE-VD 3-ICA vibration meter

1 x battery

1 x PC software

1 x bracket

2 x screws

1 x user manual

1 x ISO Calibration Certificate
