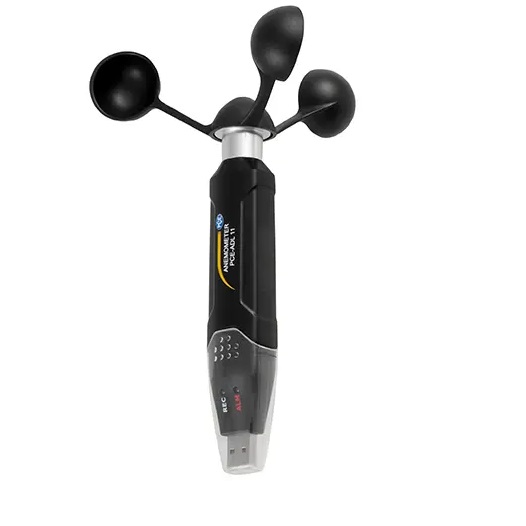

PCE ADL 11 Anemometer (1,2~30,0 m/s)

Measuring ranges:

1.2 ... 30.0 m / sec.

4.3 ... 108.0 km / h

2.33 ... 58.32 knots

2.69 ... 67.2 miles / h

236 ... 5906 ft / min

Resolution:

0.01 m / s

0.1 km / h

0.1 knot

0.1 mph

1 ft / min

Measurement accuracy:

m / s: ± (3% + 0.20 m / s)

km / h: ± (3% + 1.0 km / h)

Knots: ± (3% + 0.4 knots)

miles / h: ± ( 3% + 0.4 miles / h)

ft / min: ± (3% + 40 ft / m)

Storage: For up to 60000 readings

Data Interface: USB for data transmission

PC software: For data evaluation with graphical representation

Selectable recording intervals: 3 seconds, 5 seconds, 10 seconds, 30 seconds, 1 min, 5 mins, 10 mins, 30 mins, 1 hour, 2 hours, 3 hours, 6 hours, 12 hours

Operating condition: Indicated by red, yellow and green LEDs

Alarm when extremes are exceeded: Yes

Measuring modes: Automatic and manual start of the measurement

Sensor Anemometer

Power supply: Lithium Thionyl Chloride Battery, 3.6V Mignon

Alarm at low battery voltage: Yes

Operating conditions: 0 ... 50°C / 32 ... 122°F, <80% relative humidity

Max. Height above sea level: 2000 m / 6561 ft

Weight : 49 g / < 1 lb

Dimensions: 145 x 35 x 30 mm / 5.7 x 1.4 x 1.2 in

Delivery Scope:

1 x Anemometer PCE-ADL 11

1 x Mounting device

1 x Software

1 x Impeller

1 x 3.6V lithium thionyl chloride battery

1 x User manual
