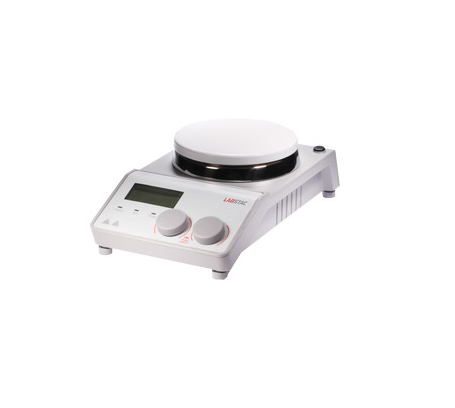

Labstac MH124 Magnetic Hotplate Stirrer (100-1500 rpm; 20 L)

Capacity: 20 L

Stirring Positions: 1

Speed Range: 100-1500 rpm

Temperature Range: RT-340°C

Permissible Ambient Temperature: 5-40°C

Temperature Increment: 1°C

Control Accuracy of Work Plate: ±1(<100°C), ±1%(>100°C)

Temperature Accuracy: ±0.1°C

Safety Temperature: 360°C

Control Accuracy with Sensor PT1000: ±0.2°C

Permissible Relative Humidity: 0.8

Heating Warning: 50°C

Motor rating Input [W]: 18

Motor rating output [W]: 10

Heating Output: 500 W

Work Plate Size: 135 mm

Stirrer Dimension: 80 mm

Platform Material: Stainless steel with ceramic coating

Speed Display: LCD

Speed Display Resolution: ±1 rpm

Temperature Display: LCD

Remote Control (RS232 interface): Yes

Motor Type: Brushless DC motor

Protection Class: IP42

Overall Dimension: 160Wx280Dx85H mm

Weight: 2.8 kg

Power: 550 W

Power Supply: 100-120 V/200-240 V, 50/60 Hz

Optional Accessories:

SX1002 Stirrer bar 10mm x 6mm

SX1003 Stirrer bar 15mm x 8mm

SX1004 Stirrer bar 20mm x 8mm

SX1005 Stirrer bar 25mm x 8mm

SX1006 Stirrer bar 30mm x 6mm

SX1007 Stirrer bar 40mm x 8mm

SX1008 Stirrer bar 50mm x 8mm

SX1009 Stirrer bar remover -  Length of 200mm

SX1012 Temperature sensor - Length of 230mm

SX1013 Temperature sensor with glass coating; Length of 230mm

SX1014 Temperature sensor - Length of 100mm

SX1015 Reaction block; For 50ml round bottom flask (one flask capacity)

SX1016 Reaction block; For 100ml round bottom flask (one flask capacity)

SX1017 Reaction block; For 250ml round bottom flask (one flask capacity)

SX1018 Reaction block; For 500ml round bottom flask (one flask capacity)

SX1019 Blue carrying plate; Used with SX1021 to SX1026

SX1020 Blue Fixed ring; Used with SX1021 to SX1026

SX1021 Red quarter pie; 11 holes, 4 ml reaction vessel, Ø15.2mm, 20mm depth, used with SX1019 and SX1020

SX1022 Purple quarter pie; 4 holes, 20 ml reaction vessel, Ø28mm, 24mm depth, used with SX1019 and SX1020

SX1023 Blue quarter pie; 4 holes, 30 ml reaction vessel, Ø28mm, 30mm depth, used with SX1019 and SX1020

SX1024 Black quarter pie; 4 holes, 40 ml reaction vessel, Ø28mm, 43mm depth, used with SX1019 and SX1020

SX1025 Green quarter pie; 6 holes, 8ml reaction vessel, Ø17.8mm, 26mm depth, used with SX1019 and SX1020

SX1026 Golden quarter pie; 4 holes, 16ml reaction vessel, Ø21.6mm, 31.7mm depth, used with SX1019 and SX1020

SX1027 Stirrer bar; Stirrer bar (65mm x 8mm), 1pc/pk

SX1028 Stirrer bar; Stirrer bar (80mm x 13mm), 1pc/pk

SX1029 Protective cover; For hotplate model
