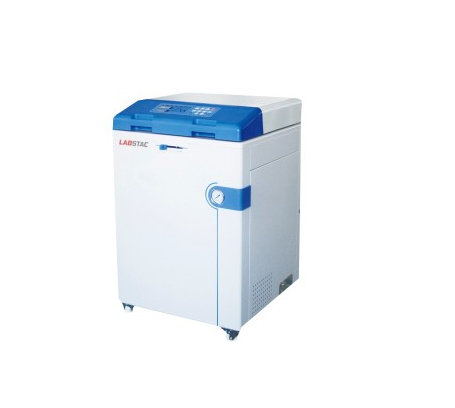

Labstac AV223 Vertical Autoclave (85 L)

Capacity: 85 L

Function: Fully automatic

Sterilization Temperature: 105-138°C

Sterilization Time: 1-300 min

Warming Temperature: 45—60℃

Warming Time: 1—9999 min

Melting Temperature: 60-100

Melting Time: 1-300 min

Steam Exhausting Temperature: 73—104℃

Humidity Range: 10%-85% RH

Working Pressure: 0-0.6 MPa

Maximum Working Pressure: 0.27 MPa

Timer Range: 0 minute-6 days

Chamber Dimension: 400×700 mm

Overall Dimension (LxWxH): 660x644x980 mm

Weight: 113/160 kg

Power: 4600 W

Power Supply: 220 V, 60 Hz

Accessories:

AX1001Stainless steel baskets

AX1002Drainage hose

AX1003Exhauset bottle

Optional Accessories:

AX1004Printer

AX1005Printing set

AX1006Load thermometer

AX1007Cooling fan

AX1008Temperature controller

AX1009Temperature sensor

AX1010Pressure Sensor

AX1011Heater

AX1012Sealing ring

AX1013Pressure gauge

AX1014Stainless steel pail

AX1015Relay

AX1016Main board

AX1017Display board

AX1018Jiggle switch

AX1019Handle

AX1020Pressure switch

AX1021Solenoid Valve
