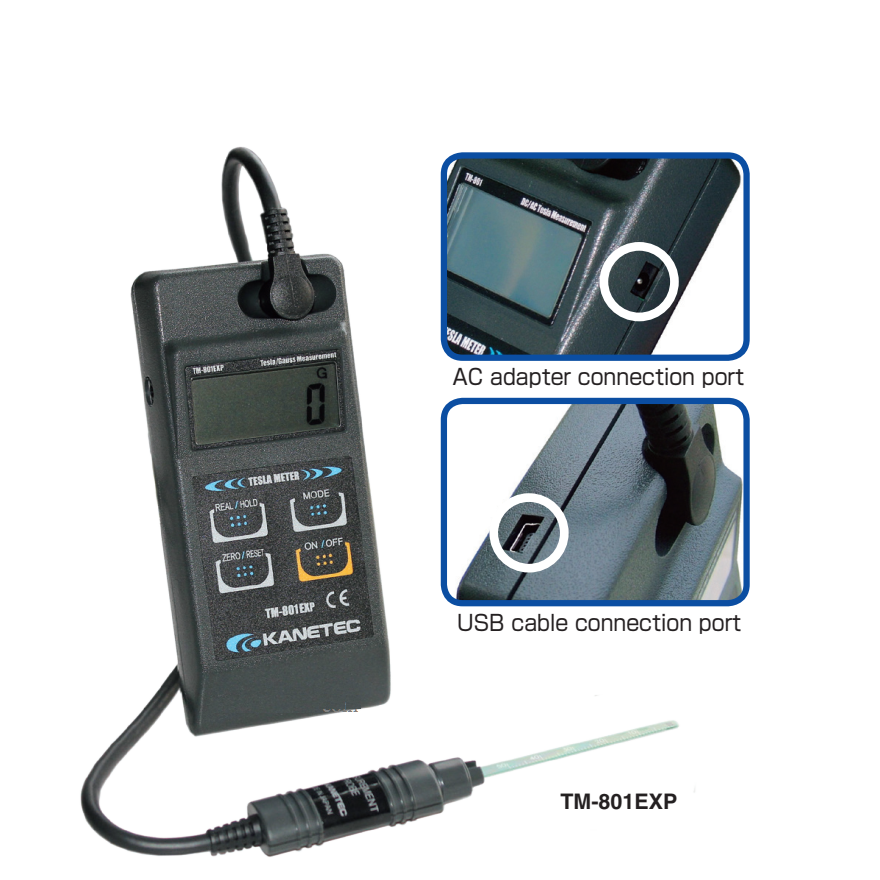

KANETEC TM-801EXP Tesla-Gauss Measurement (0 - 3000.0mT)

Object to detect:

- DC magnetic flux density Polarities (N, S)

- AC magnetic flux density 40-500Hz

Unit of measurement: mT/G selection

Measurement range: 0 - 3000.0mT

Measurement mode:

- DC X 1*:

  + Range: 0 - 200.0mT

                  200.1 - 3000.0mT

  + Resolution: 0.1 mT

                        1 mT

  + Indication accuracy: ±(5% of rdg.+ 3digit)

                                      ±(5% of rdg.+ 10digit)

- DC X 10:

  + Range: 0 - 300.00mT

  + Resolution: 0.01mT

  + Indication accuracy: ±(3% of rdg.+ 5digit)

- AC*:

  + Range: 0 - 150.00mT

                 150.1 - 300.0mT

                 301.0 - 1500.0mT

  + Resolution: 0.01 mT

                        0.1 mT

                        1mT

  + Indication accuracy: ± (5% of rdg.+ 20digit)

Function:

- Zero reset: Max. detect value hold

- Polarity judgment: Auto power off (Cancellable)

Output: Digital output (USB) / Analog output

Indication:

- Detected value: Digital

- Polarity: Alphabets (N/S)

Operating temperature: 0- +40°C (104°F)

Power Source:

- Battery: Size AA(1.5 V) X 4 pieces

- External power source 5 - 6 VDC(AC adapter / USB feed)

Dimensions: 140(5.51) high X 64(2.51) wide X 30(1.18) thick

Mass: Approx. 250 g/0.55 lb (batteries & probe included)

Accessories: Probe(TM-801PRB), batteries, carrying case

Optional:

- Axial probe (TM-801AXL)

- Reference magnetic field(TM-SMF, TM-AMF)
