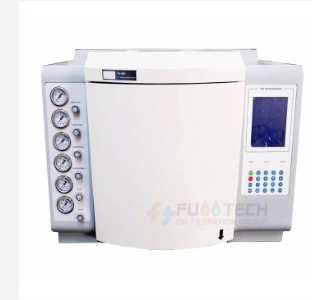

Fuootech GC-2010SD Transformer Oil DGA Dissolved Gas Analyzer (8 ℃ ~ 450 ℃)

Operation display: 5.7-inch lattice localization color LCD

Temperature control region: 6 Road

Temperature range: Above room temperature 8℃ ~ 450℃, Incremental: 1℃

Accuracy: ±0.1℃

Temperature programmed order number: 16 order

Cheng Sheng rate: 0.1~39℃/min

Gas Control: Mechanical valve control mode, electronic flow controller (EFC) and electronic pressure controller (EPC) method

External event: 4 way; Auxiliary control output 4 road.

Injector type: Packed column sample or 10 quantitative sampling valves.

Number of detector: 3; double FID, TCD

The parameters of the Ni conversion furnace: More than 85% or higher; Working temperature 350 ℃

Boot into the sample: manual, automatic optional

Communication interface: Ethernet: IEEE802.3

Flame ionization detection (GC-FID).

Detection limit: Mt≤3×10-12g/s (Sixteen alkanes)

Noise:≤5×10-14A

Drift:≤1×10-13A/30min

Linearity range: ≥106

Thermal conductivity detector(TCD)

Sensitivity: S≥3500mV•ml/mg(Sixteen alkanes)(1, 2, 4, 8 x magnification optional)

Noise:≤10μV;

Baseline drift:≤30μv/30min
