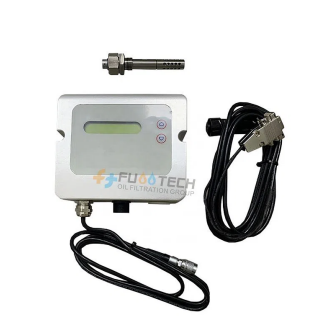

Fuootech FTEE Online PPM Moisture Content Meter FTEE ( AC: 220V / 50Hz, DC: 9V ~ 33V )
Manufacturer: Fuootech Model: FTEE - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Power Supply: AC: 220V/50Hz (optional)
DC: 9V~33V (standard configuration)
Signal Output: RS232 serial output
Two 4~20mA output,the maximum loop load 500Ω(optional) (Dual channels can configure with output freely)
Two relay alarm output (optional) ( The alarm output type can be freely equipped. aw, t, ppm)
LCD Display: Switch water activity(aw), temperature (℃) and water content (ppm) at will
Alarm Line Setting: The alarm value can be set by serial port setting software (aw,t,ppm)(optional)
Probe Type: Several types to be choose according to customers’ needs for the probe length.
Probe Cable Length: 1m(Can be customized for other length)
Working Mode: Support on-line/off-line test
Required Test Temperature: Maximum Pressure: 10 bar
Oil Temperature: -40℃~125℃
Water Activity Collection aw: Test Range: 0~1 aw
Test Resolution: ±0.0003 aw
Test Accuracy: ±0.02 aw @(0~0.8aw)
Repeatability Error: ±0.002 aw
Response Time with Stainless Steel Filter: 10 min
Temperature Collection T: Test Range: -20℃ ~ 80℃
Test Resolution: 0.015℃
Test Accuracy: ±0.5℃ @(0~80℃)
Repeatability Error: ≤ ±0.2℃
Response Time: 30 s
Absolute Water Content AH: Test Range: 0~1000 ppm
IP Grade: IP Grade of Probe: IP67
IP Grade of Shell: IP65
