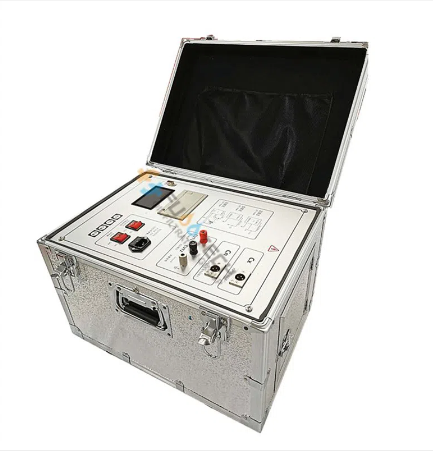

Fuootech FTD-9000 Transformer Capacitance and Tan Delta Tester (10μA ~ 1A)

Accuracy: Cx: ±(reading×1%+1pF)

Tgδ: ±(reading×1%+0.00040)

Anti-interference: Variable frequency anti-interference, the above accuracy can be reached even under 200% interference.

Capacitance range: Internal HV: 3pF~60000pF/12kV 60pF~1.2μF/0.5kV

External HV: 3pF~1.5μF/12kV 60pF~30μF/0.5kV

Best Resolution: 0.001pF, 4 valid digits.

tgδ range: Unlimited, 0.001% resolution, automatic identification for capacitance, inductance and resistance of three tested articles.

Test current range: 10μA~1A

Internal HV: Set voltage range: 0.5~10kV/12kV

Maximum output current: 200mA

Buck-boost method: continuous smooth regulation

Accuracy: ±(1.5%x reading+10V)

Voltage Resolution: 1V

Test frequency: 45, 50, 55Hz single frequency

45/55Hz automatic dual variable frequency

Frequency accuracy: ±0.01Hz

External HV: UST, maximum test current is 1A/ 40~70Hz

GST, maximum test current is 12kV/1A/40-70Hz

CVT self-excitation low voltage output: Output voltage 3~50V, output current 3~30A

Measuring duration: About 40s, depending on measuring method

Input power supply: 180V~270VAC, 50Hz/60Hz±1%, supplied by alternating current or generator

Computer interface: Standard RS232 interface

Printer: WH-A7 mini-type thermal printer

Operating Temperature: -10℃~50℃

Relative humidity: <90%, Non-condensing

Overall dimension: 340×260×270mm

Weight: 22kg
