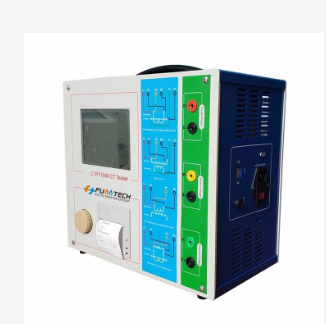

Fuootech FTCT-100B 100Vrms Portable CT PT Current Transformer Comprehensive Analyzer (0 ~ 180Vrms, 12Arms, 18A)

Usage: Class P/TP CT & VT

Output: 0~180Vrms, 12Arms, 18A (peak value)

Voltage measurement accuracy: ±0.05%

CT Ratio: Range: 1~40000

          accuracy: ±0.05%

PT Ratio: Range: 1~40000

          accuracy: ±0.05%

Phase: Range: ±5min

       accuracy: 0.5min

DC resistance: Range: 0~300Ω

               accuracy: 2%±2mΩ

Burden: Range: 0~1000VA

        accuracy: 2%±0.2VA

Power supply: AC220V±10%,50Hz

Environmental Conditions: Operating temperature: -10℃~50℃, Humidity: ≤90%

Weight and Dimensions Dimensions: 340 mm×300 mm×150mm, Weight<9kg
