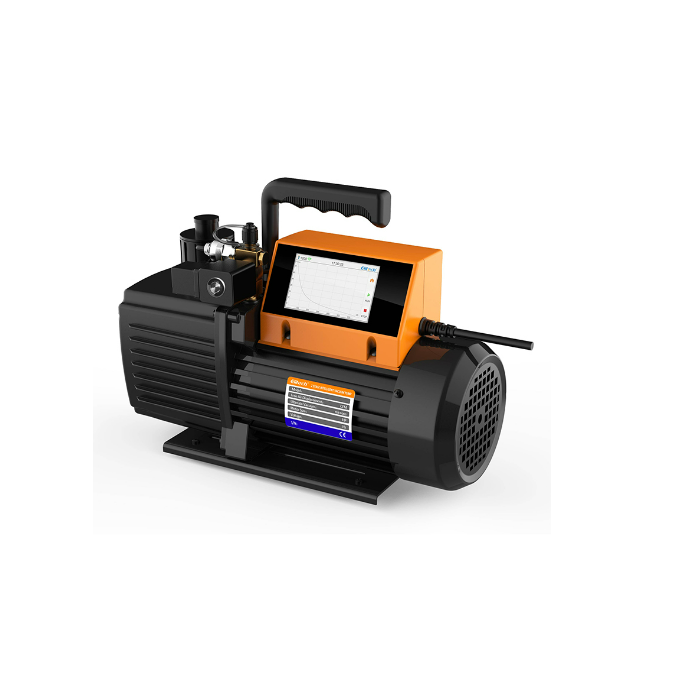

Elitech V1200 Intelligent Vacuum Pump (12 CFM, 1HP, 25.3oz)

Stage: 2 stages

Power supply: 110V/60Hz; 220V/50Hz

Motor: AC induction motor

Speed regulation: Fixed speed

Vacuum accuracy: 1-10000 microns: ±10% reading/±10 microns

                              10000-19000 microns: ±20% reading

Operating temperature: 41℉-104℉(5℃-40℃)

Transmission distance: 30ft/10m

Limit vacuum: 15 microns

Pumping rate: 12 CFM (5L/S)

Motor power: 1 HP (750W)

Fuel volume: 25.3oz (750ml)

Dimensions: 18.5*10.5*14.8in (470*267*380mm)

Weight: 36.8Lbs (16Kg)

Air inlet: 1/4 SAE
