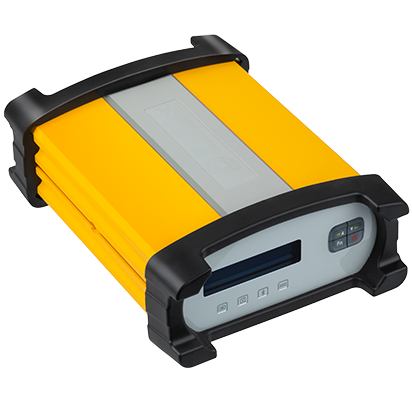

E-survey NET20 PLUS-T High-quality CORS Solution

Satellites tracking

GPS: L1CA/L2E/L2C/L5

BDS: B1/B2/B3

GLONASS: L1CA/L2CA/L3 CDMA

GALILEO: E1/E5a/E5b/E6/ALTBOC

QZSS: L1CA/L1 SAIF/L1C/L2C/LEX

IRNSS: L5

SBAS1: L1 /L5

L-Band: RTX

Channels 336

Signal reacquisition: <1 second

Cold start: <60 seconds

Warm start: < 30 seconds

Hot start: < 10 seconds

Initialization reliability: > 99.9%

Update rate: 50Hz standard, up to 50 Hz

Operation system: Linux

Internal memory: 32 GB

Dimension: 222 x 164 x 79 mm

Weight: 2 Kg

Operating temperature: -40℃ - +65℃

Storage temperature: -45℃ - +80℃

Water/dust proof: IP67

Power: 7.2 V, 13600mAh

Voltage: 9~28 VDC, 2A with over-voltage protection
