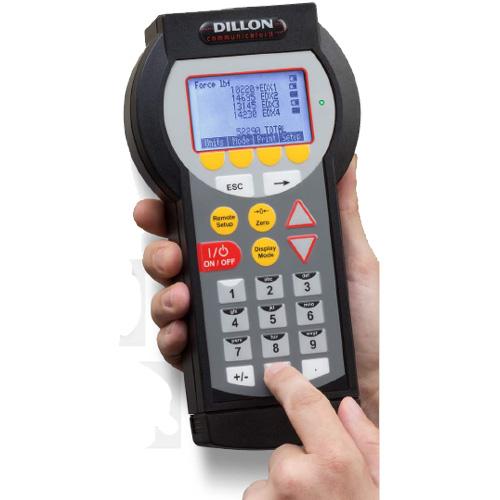

DILLON AWT05-506447 Radio/Communicator II with Backlight for EDXtreme RED Dynamometers

Enclosur :  Designed to NEMA 3 / IP54 with optional sleeve. Suitable for protected outdoor use.

Instrument Size : 9.5 x 5.0 x 2.5 inch (241 x 127 x 64mm).

Accuracy : Not applicable. Only sends and receives digital information.

Display : 128 x 64 dot-graphic LCD display can show full readings up to 5 instruments.

Battery Life : Up to 80 hours continuous radio using (4) AA alkaline batteries.

Operating Temperature : -4° F to 158° F (-20° to 70° C)

Connectors : Sealed connectors may be used for serial communications and wired connection to an EDxtreme dynamometer.

RS-232 Communication : Print or extract data easily. Continuous output can drive a scoreboard. Configurable poll character.

Included with Remote : Carry case and batteries

Accessories : Rubberized case protector sleeve. Remote wall mount bracket. Serial and remote cable assemblies

Approval : CE
