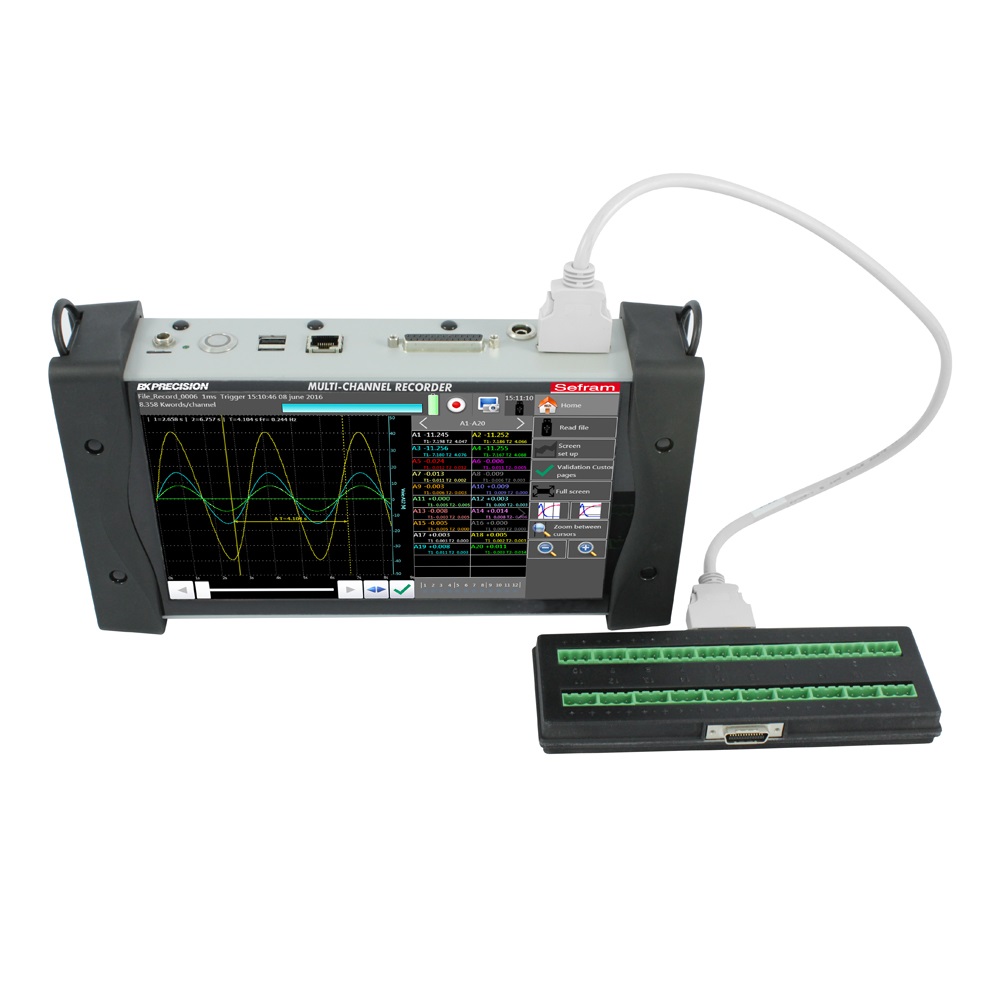

BKPRECISION DAS240 Multi-Channel Data Recorder

Internal Flash Drive Size: 32 GB

Maximum File Size: 2 GB

Operating Temperature: 0 °C to 40 °C, 80% RH (no condensation)

Storage Temperature: -20 °C to 60 °C

Display: 10” TFT touchscreen LCD, backlit, 1024 x 600 dots

Power Supply: 15 V / 4 A max with main adapter (100 / 240 VAC)

Interfaces: 2 x USB host,

LAN: (10/100 base-T with RJ45 socket)

Battery (-BAT): Non removable, Lithium-ion

Typical Battery Life (-BAT): 15 hours with standby mode, 10 hours without stand-by mode

Safety: Cat I 100 V, according to IEC61010-1

Weight: DAS240 / 3.3 lbs (1.5 kg) DAS240-BAT / 4.5 lbs (2 kg)

Dimensions (W x H x D): 2.6” x 11.7” x 6.9” (66 x 298 x 176 mm)

Supplied Accessories: Main adapter 100 / 240 V, 25 pin male connector(1) and backshell, 1 cable (70 cm) for measurement module connection, 1 measurement module (20 channels) with input terminals, stylus, soft wipe, screwdriver, calibration certificate and test report
