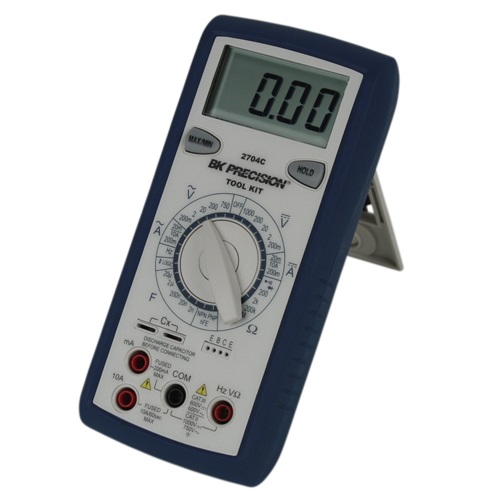

BKPRECISION 2704C KIT Manual Ranging Tool Kit DMM with Transistor Test

DC Volts

Ranges: 200 mV, 2 V, 20 V, 200 V, 1000V

Resolution: 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V

Accuracy: ±(0.8 % rdg + 1 dgts)

Input Impedance: 10 MΩ

Overload Protection: 1000 VDC or 750 VACrms*

AC Volts: (50 Hz-500 Hz)

Ranges: 200 mV, 2 V, 20 V, 200 V, 750V

Resolution: 0.1 mV, 1 mV, 10 mV, 100 mV, 1 V

Accuracy: 200 mV & 20 V ranges: ±(1.5 % rdg + 5 dgts)

200 V & 750 V ranges: ±(2.0 % rdg + 5 dgts)

Input Impedance: 10 MΩ

Overload Protection: 1000 VDC or 750 VACrms*

DC Current

Ranges: 20 mA, 200 mA, 10 A

Resolution: 10 uA, 100 uA, 10 mA

Accuracy: 20 mA to 200 mA ranges: ±(1.0 % rdg + 1 dgts)

10 A range: ±(3.0 % rdg + 3 dgts)

Input Protection: 0.5 A/500 V & 10 A/600 V fast blow ceramic fuses

10A Input: 10 A for 60 sec max. followed by a 10 minute cooling period
